Description

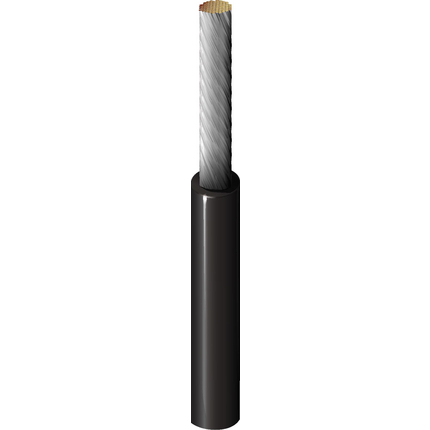

Product Overview
| Suitable Applications: | direct burial , roadway loop cables |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 1 | 14 AWG | 104×34 | TC – Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Notes |
|---|---|---|---|
| PE – Polyethylene | 0.032 in (0.81 mm) | 0.139 in (3.53 mm) | HDPE |
| Overall Cable Diameter (Nominal): | 0.139 in (3.53 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Max. Current |
|---|---|
| 2.7 Ohm/1000ft | Single conductor in free air @ 30ºC: 20 A |
Voltage
| Voltage Rating |
|---|
| 600 V RMS |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 80°C | -50°C To +80°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.39 in (35.3 mm) | 1.39 in (35.3 mm) |
| Max. Pull Tension: | 48 lbs (22 kg) |
| Bulk Cable Weight: | 18 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Outdoor |
| Sustainability: | CA Prop 65 |
| European Directive Compliance: | EU Directive 2012/19/EU (WEEE) |
History
| Update and Revision: | Revision Number: 0.471 Revision Date: 01-20-2023 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 9438 0101000 | Black | Reel | 1,000 ft | 612825248392 | C |
