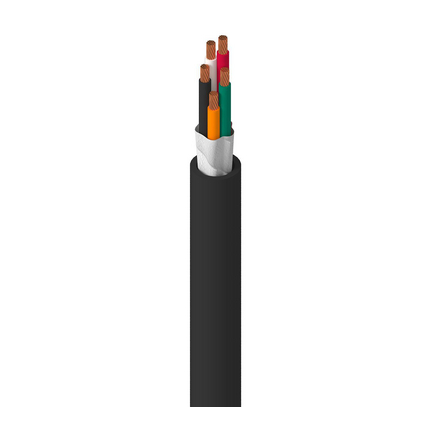

9420 - Portable Cordage, 5 C #16 Str BC, EPDM Ins, CPE Jkt, UL Type SO

9420 – Portable Cordage, 5 C #16 Str BC, EPDM Ins, CPE Jkt, UL Type SO

Call for Price

Compare
SKU: 9420 Categories: , , , ,

Description

Product Overview

Suitable Applications: extra hard service cordage; oil resistant applications; to power tools and appliances

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 5 16 AWG 65×34 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) EPDM – Ethylene Propylene Diene Monomer 0.033 in (0.84 mm) 0.123 in (3.12 mm) Green, Red, Orange, White, Black
Outer Shield
Material
No Shield
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Paper Tape CPE – Chlorinated Polyethylene (Thermoset) 0.084 in (2.1 mm) 0.506 in
Overall Cable Diameter (Nominal): 0.506 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
4.4 Ohm/1000ft 10 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
600 V

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -20°C To +60°C
Bend Radius
Stationary Min. Installation Min.
5.06 in (129 mm) 5.06 in
Max. Pull Tension: 162.5 lbs (73.71 kg)
Bulk Cable Weight: 133 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Oil Resistance
NEC / UL Compliance: Article 400, SO
AWM Compliance: SO
CEC / C(UL) Compliance: LL7874
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Surface Printing: “16-5 SO 60°C (UL) E3462 CSA LL7874 16-5 SO 60°C FT2”

History

Update and Revision: Revision Number: 0.384 Revision Date: 05-05-2023
