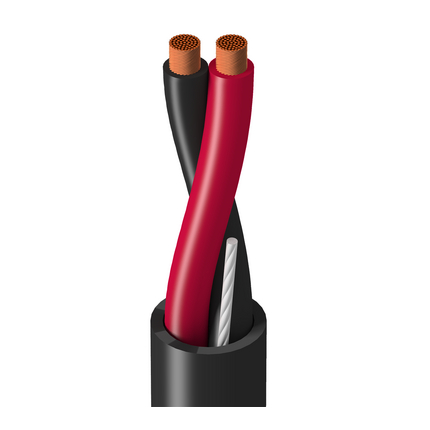

9412 - High Perform Instr, 1 Pr #12 Str TC, PVC Ins E2, PVC Jkt, PLTC

9412 – High Perform Instr, 1 Pr #12 Str TC, PVC Ins E2, PVC Jkt, PLTC

Call for Price

Compare
SKU: 9412 Categories: , , , ,

Description

Product Overview

Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 12 AWG 65×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC – Polyvinyl Chloride 0.025 in (0.64 mm) 0.143 in (3.63 mm) Black & Red
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.042 in (1.1 mm) 0.370 in (9.40 mm) Yes
Overall Cable Diameter (Nominal): 0.370 in (9.40 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Pair(s) 1.78 Ohm/1000ft 25 pF/ft (82 pF/m) 10.3 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (PLTC)

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -30°C to +105°C
Table Notes: AWM 80°C
Bend Radius
Stationary Min. Installation Min.
3.7 in (94 mm) 3.7 in (94 mm)
Max. Pull Tension: 169 lbs (76.7 kg)
Bulk Cable Weight: 77 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: UL 1685 UL Loading, T-29-520, IEEE 1202, FT4
NEC / UL Compliance: Article 725, Article 727, CL3R, ITC, PLTC
AWM Compliance: AWM 2464
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.604 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color UPC Footnote
9412 0601000 Chrome 612825240297 C
9412 0602500 Chrome 612825240303 Z
9412 060500 Chrome 612825240310 C
