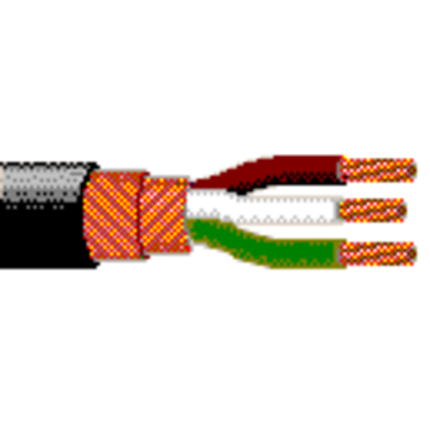

Product Overview
| Suitable Applications: |
Low frequency microphone or musical instruments; Balanced analog audio |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Nominal Diameter |
No. of Conductors |
| 24 |
105×44 |
BC – Bare Copper (High Conductivity) |
0.024 in |
3 |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
0.048 in |
0.012 in |
| Number |
Color |
| 1 |
White |
| 2 |
Green |
| 3 |
Brown |
| Type |
Material |
Coverage [%] |
| Spiral Serve / Screen |
Bare Copper (BC) |
95% |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
0.185 in |
0.03 in |
Electrical Characteristics
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Other Conductor to Shield |
| 40 pF/ft |
110 pF/ft |
| Nominal Inductance |
| 0.19 µH/ft |
| Nominal Characteristic Impedance |
| 47 Ohm |
| Max. Recommended Current [A] |
| 3.36 Amps per Conductor at 25ºC |
| UL Voltage Rating |
| 300 V RMS |
Temperature Range
| Operating Temperature Range: |
-20°C To +80°C |
Mechanical Characteristics
| Bulk Cable Weight: |
23 lbs/1000ft |
| Max. Pull Tension: |
45 lbs |
| Min. Bend Radius/Minor Axis: |
2 in |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor (Not Riser or Plenum) |
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2003/11/EC (BFR): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): |
Yes |
| EU Directive Compliance: |
EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS): |
Yes |
Suitability
| Suitability – Indoor: |
Yes |
Flammability, LS0H, Toxicity Testing
| UL voltage rating: |
300 V RMS |
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
UPC |
| 9398 B591000 |
Black, Matte |
Reel |
1,000 ft |
612825239956 |
| Footnote: |
C – CRATE REEL PUT-UP. |
History
| Update and Revision: |
Revision Number: 0.386 Revision Date: 01-10-2024 |
