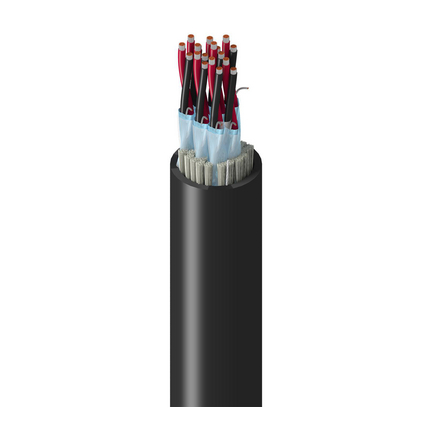

9390 - High Perform Instr, 9 Pr #18 Str TC, PVC Ins E2, IS, PVC Jkt, PLTC

9390 – High Perform Instr, 9 Pr #18 Str TC, PVC Ins E2, IS, PVC Jkt, PLTC

Call for Price

Compare
SKU: 9390 Categories: , , , ,

Description

Product Overview

Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 9 18 AWG 19×30 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC – Polyvinyl Chloride 0.016 in (0.41 mm) 0.078 in (2.0 mm) Black, Red and Numbered
Inner Shield
Element Shield Type Material Coverage Drainwire Type
Each Pair Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (19×32) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.063 in (1.6 mm) 0.667 in Yes

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
7.19 Ohm/1000ft 0.5 Ohm/1000ft (1.6 Ohm/km) 61 pF/ft (200 pF/m) 112 pF/ft (367 pF/m) 7 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (PLTC)

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -30°C To +105°C
Max. Pull Tension: 579.6 lbs (262.9 kg)
Bulk Cable Weight: 244 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire: UL 1685 FT4 loading, FT4, IEEE 1202 FT4
NEC / UL Compliance: Article 725, Article 727, Article 800
AWM Compliance: AWM 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.439 Revision Date: 01-10-2024

Part Numbers

Variants
Item # Color UPC Footnote
9390 0601000 Chrome 612825239857 C
9390 060500 Chrome 612825239864 C
