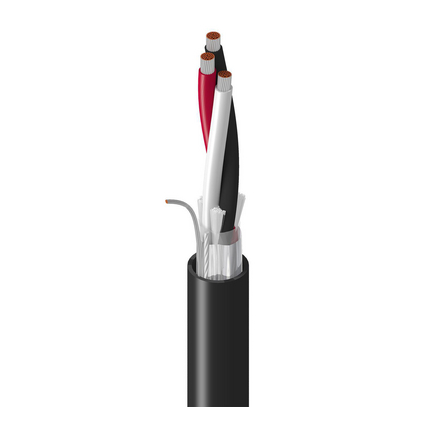

9367 - High Perform Instr, 1 Tri #14 Str TC, PVC Ins E1, OS, PVC Jkt, PLTC

9367 – High Perform Instr, 1 Tri #14 Str TC, PVC Ins E1, OS, PVC Jkt, PLTC

Call for Price

Compare
SKU: 9367 Categories: , , , ,

Description

Product Overview

Suitable Applications: Instrumentation, Sensors, Valves, Positioners, RTD, 4-20mA, 0-10V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Triad(s) 1 14 AWG 42×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Triad(s) PVC – Polyvinyl Chloride 0.022 in (0.56 mm) 0.119 in (3.02 mm) Black, White, Red
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 16 AWG (19×29) TC
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter Ripcord
PP – Polypropylene Tape PVC – Polyvinyl Chloride 0.042 in (1.1 mm) 0.358 in (9.09 mm) Yes
Overall Cable Diameter (Nominal): 0.358 in (9.09 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Triad(s) 2.8 Ohm/1000ft 27 pF/ft (89 pF/m) 54 pF/ft (180 pF/m) 8 Amps per conductor at 25°C
Voltage
UL Voltage Rating
300 V (PLTC)

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -30°C to +105°C
Table Notes: AWM 80°C
Bend Radius
Stationary Min. Installation Min.
3.6 in (91 mm) 3.6 in (91 mm)
Max. Pull Tension: 200 lbs (91 kg)
Bulk Cable Weight: 94 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: UL 1685 UL Loading, T-29-520, IEEE 1202, FT4
NEC / UL Compliance: Article 725, Article 727, CL3R, ITC, PLTC
AWM Compliance: AWM 2464
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.612 Revision Date: 01-04-2024

Part Numbers

Variants
Item # Color UPC Footnote
9367 0601000 Chrome 612825239550 C
9367 0602500 Chrome 612825239567 Z
9367 060500 Chrome 612825239574
9367 0605000 Chrome 612825239581 C Z
