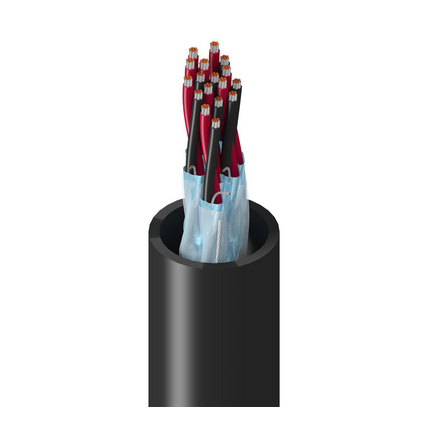

9332 - High Perform Instr, 9 Pr #22 Str TC, PVC Ins E2, IS, PVC Jkt, PLTC

9332 – High Perform Instr, 9 Pr #22 Str TC, PVC Ins E2, IS, PVC Jkt, PLTC

Call for Price

Compare
SKU: 9332 Categories: , , , ,

Description

Product Overview

Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 9 22 AWG 7×30 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.062 in (1.6 mm) Black, Red and Numbered
Inner Shield
Element Shield Type Material Coverage Drainwire Type
Each Pair Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.053 in (1.3 mm) 0.53 in Yes

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
18.2 Ohm/1000ft 2.1 Ohm/1000ft (6.9 Ohm/km) 26 pF/ft (85 pF/m) 45 pF/ft (150 pF/m) 2.4 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (PLTC)

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -30°C To +105°C
Max. Pull Tension: 245.7 lbs (111.4 kg)
Bulk Cable Weight: 134 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: UL 1685 FT4 loading, FT4, IEEE 1202 FT4
NEC / UL Compliance: Article 725, Article 727, Article 800
AWM Compliance: AWM 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.434 Revision Date: 01-10-2024

Part Numbers

Variants
Item # Color UPC Footnote
9332 0601000 Chrome 612825231127 C
9332 060500 Chrome 612825231134 C
