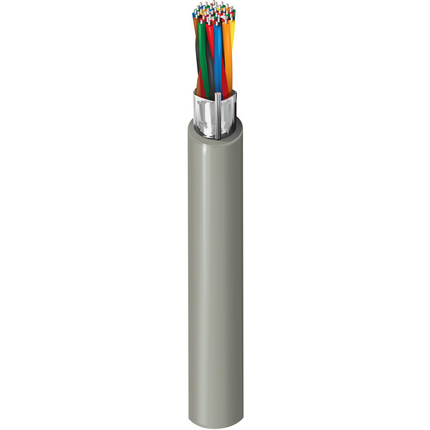

Product Overview
| Suitable Applications: |
low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v,
); line level audio; computer communication; panel wiring |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Pairs |
| 22 |
Solid |
TC – Tinned Copper |
15 |
| Material |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
0.013 in |
| Number |
Color |
| 1 |
Black & Red |
| 2 |
Black & White |
| 3 |
Black & Green |
| 4 |
Black & Blue |
| 5 |
Black & Yellow |
| 6 |
Black & Brown |
| 7 |
Black & Orange |
| 8 |
Red & White |
| 9 |
Red & Green |
| 10 |
Red & Blue |
| 11 |
Red & Yellow |
| 12 |
Red & Brown |
| 13 |
Red & Orange |
| 14 |
Green & White |
| 15 |
Green & Blue |
| Type |
Material |
Material Trade Name |
Coverage [%] |
Drainwire Material |
Drainwire AWG |
Drainwire Construction n x D |
| Tape |
Bi-Laminate (Alum+Poly) |
Beldfoil® |
100% |
TC – Tinned Copper |
22 |
7×30 |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
0.449 in |
0.037 in |
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Outer Shield DCR |
| 16.5 Ohm/1000ft |
14 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Shield |
| 35 pF/ft |
50 pF/ft |
| Nominal Inductance |
| 0.2 µH/ft |
| Max. Recommended Current [A] |
| 1.4 Amps per Conductor at 25ºC |
| UL Voltage Rating |
| 300 V RMS |
Temperature Range
| UL Temp Rating: |
80°C (UL AWM Style 2464) |
| Operating Temperature Range: |
-20°C To +80°C |
Mechanical Characteristics
| Bulk Cable Weight: |
124 lbs/1000ft |
| Max. Pull Tension: |
242 lbs |
| Min. Bend Radius/Minor Axis: |
4.5 in |
Standards
| CEC/C(UL) Compliance: |
CMG |
| UL AWM Style Compliance: |
AWM 2464 (300 V 80°C) |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2003/96/EC (BFR): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive Compliance: |
EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS): |
Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability: |
UL1685 FT4 Loading |
| IEC Flammability: |
IEC 60332-1-2 |
| UL voltage rating: |
300 V RMS |
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
UPC |
| 9315 060500 |
Chrome |
Reel |
500 ft |
612825228196 |
| 9315 0601000 |
Chrome |
Reel |
1,000 ft |
612825228189 |
| Footnote: |
C – CRATE REEL PUT-UP. |
History
| Update and Revision: |
Revision Number: 0.336 Revision Date: 05-05-2023 |
