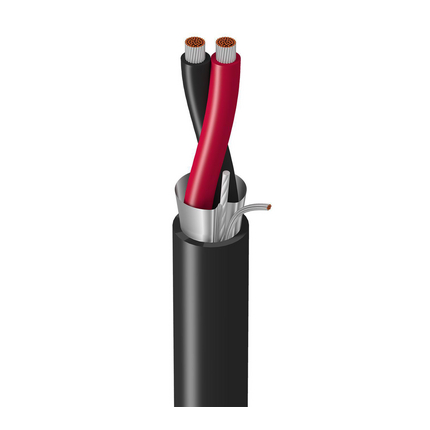

9314 - High Perform Instr, 1 Pr #14 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC

9314 – High Perform Instr, 1 Pr #14 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC

Call for Price

Compare
SKU: 9314 Categories: , , , ,

Description

Product Overview

Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 14 AWG 42×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC – Polyvinyl Chloride 0.022 in (0.56 mm) 0.119 in (3.02 mm) ICEA Chart E2
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 16 AWG (19×29) TC
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter Ripcord
Cotton Serve PVC – Polyvinyl Chloride 0.042 in (1.1 mm) 0.325 in (8.26 mm) Yes
Overall Cable Diameter (Nominal): 0.325 in (8.26 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Pair(s) 2.8 Ohm/1000ft 27 pF/ft (89 pF/m) 54 pF/ft (180 pF/m) 8 Amps per conductor at 25°C
Voltage
UL Voltage Rating
300 V (PLTC)

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -30°C to +105°C
Table Notes: AWM 80°C
Bend Radius
Stationary Min. Installation Min.
3.3 in (84 mm) 3.3 in (84 mm)
Max. Pull Tension: 147 lbs (66.7 kg)
Bulk Cable Weight: 63 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: UL 1685 UL Loading, T-29-520, IEEE 1202, FT4
NEC / UL Compliance: Article 725, Article 727, CL3R, ITC, PLTC
AWM Compliance: AWM 2464
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.612 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
9314 060U500 Chrome UnReel 500 ft 612825228110
9314 0601000 Chrome Reel 1,000 ft 612825228127 C
9314 0605000 Chrome Reel 5,000 ft 612825228134 C Z
