Product Overview
| Suitable Applications: |
RG62A/U Coax 93 Ohm; For data transmission applications |

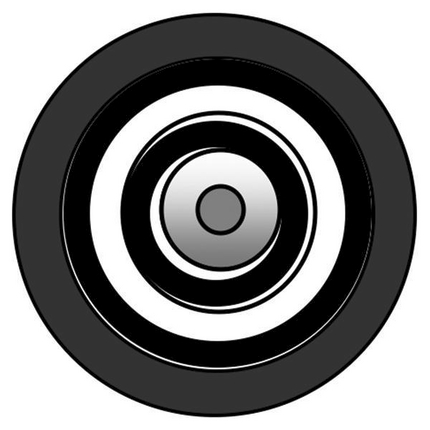

Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Nominal Diameter |
No. of Conductors |
| 22 |
Solid |
BCCS – Bare Copper Covered Steel |
0.64 in |
1 |
| Type |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
| Semi-solid dielectric |
PO – Polyolefin |
3.71 mm |
0.13 mm |
| Number |
Color |
| Wire 1 |
Clear |
| Material |
Color |
Nominal Diameter |
Nominal Wall Thickness |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
Black |
6.1 mm |
0.89 mm |
| Type |
Material |
Coverage [%] |
| Braid |
Bare Copper (BC) |
95% |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
10.55 mm |
1.3 mm |
Construction and Dimensions
| Type of Armor |
Material |
Thickness of Armoring Wires |
Coverage Percentage |
| Steel Wire Armoring |
Galvanized steel wire |
0.9 mm |
Min. 95% |
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Outer Shield DCR |
| 135.2 Ohm/km |
9.5 Ohm/km |
| Nom. Capacitance Conductor to Shield |
| 44.3 pF/m |
| Nominal Inductance |
| 0.38 µH/m |
| Nominal Characteristic Impedance |
| 93 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] |
Nom. Insertion Loss |
| 1 MHz |
0.82 dB/100m |
| 10 MHz |
2.79 dB/100m |
| 50 MHz |
6.23 dB/100m |
| 100 MHz |
8.86 dB/100m |
| 200 MHz |
12.47 dB/100m |
| 400 MHz |
17.39 dB/100m |
| 700 MHz |
23.95 dB/100m |
| 900 MHz |
26.9 dB/100m |
| 1000 MHz |
28.54 dB/100m |
| Nominal Delay |
Nominal Velocity of Propagation (VP) [%] |
| 400 ns/ft |
84% |
Temperature Range
| Installation Temperature Range: |
-15°C To +80°C |
| Storage Temperature Range: |
-45°C to +80°C |
| Operating Temp Range (Flexible Install): |
-15 to +80 °C |
| Operating Temp Range (Fixed Install): |
-45 to +80 °C |
Mechanical Characteristics
| Oil Resistance: |
IEC 60811-404 |
| Min. Bend Radius During Installation: |
158.25 mm |
Standards
| CENELEC Compliance: |
EN 50290-2-20 |
Suitability
| Suitability – Sunlight Resistance: |
Yes |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-3-24 |
| IEC 60754-1 – Halogen Amount: |
Zero |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
2.5 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
| IEC 61034-2 – Smoke Density Min. Transmittance: |
60% |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 9269LS.00500 |
Black |
Reel |
500 m |
8719605020390 |
| 9269LS.001000 |
Black |
Reel |
1,000 m |
8719605020383 |
History
| Update and Revision: |
Revision Number: 0.176 Revision Date: 08-24-2023 |
