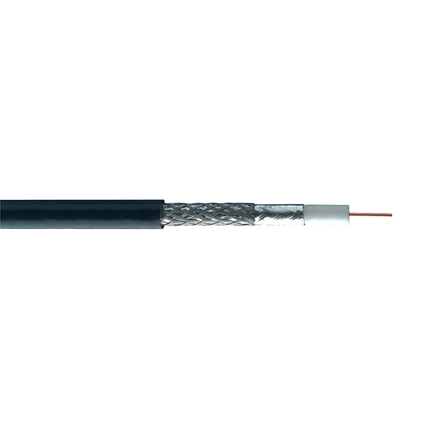

9248 - Analog Video, RG6, #18 Solid BC, Foil + 60% TC Braid, PVC Jacket, CM

9248 – Analog Video, RG6, #18 Solid BC, Foil + 60% TC Braid, PVC Jacket, CM

Call for Price

Compare
SKU: 9248 Categories: , , ,

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
18 Solid BC – Bare Copper 0.04 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 0.18 in
Table Notes: Gas Injected
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Tinned Copper (TC) 60%
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.27 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
6.4 Ohm/1000ft 6.4 Ohm/1000ft 5.6 Ohm/1000ft 5.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.2 pF/ft
Inductance
Nominal Inductance
0.106 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
5-450 MHz 23 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.3 dB/100ft
5 MHz 0.54 dB/100ft
10 MHz 0.7 dB/100ft
50 MHz 1.5 dB/100ft
100 MHz 2 dB/100ft
200 MHz 2.8 dB/100ft
400 MHz 4 dB/100ft
700 MHz 5.3 dB/100ft
900 MHz 6.1 dB/100ft
1000 MHz 6.5 dB/100ft
1500 MHz 8.3 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.24 ns/ft 82%
Voltage
UL Voltage Rating Voltage Rating [V]
300 V RMS 30 V RMS
Electrical Characteristics Notes: 30 V RMS (UL AWM Style 1354); 300 V RMS (CM)

Temperature Range

UL Temp Rating: 80°C
Operating Temperature Range: -40°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 35 lbs/1000ft
Max. Pull Tension: 44 lbs
Min. Bend Radius/Minor Axis: 2.75 in

Standards

NEC/(UL) Compliance: CM
CEC/C(UL) Compliance: CM
UL AWM Style Compliance: AWM 1354 (30 V 80°C)
CPR Euroclass: Eca
RG Type: 6
Series Type: 6

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes
Suitability – Outdoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 89248 and 82248

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC/EAN
9248.00152 Black Reel 152 m 8719605020321
9248.00U152 Black UnReel 152 m 8719605020352
9248.00305 Black Reel 305 m 8719605020338
9248 010500 Black Reel 500 ft 612825357858
9248 010U500 Black UnReel 500 ft 612825225768
9248.00500 Black Reel 500 m 8719605020345
9248 0101000 Black Reel 1,000 ft 612825357681
9248 010U1000 Black UnReel 1,000 ft 612825358794
9248.001000 Black Reel 1,000 m 8719605020314
9248 0101640 Black Reel 1,640 ft 612825357674
9248 0103280 Black Reel 3,280 ft 612825358800
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.424 Revision Date: 12-19-2022
