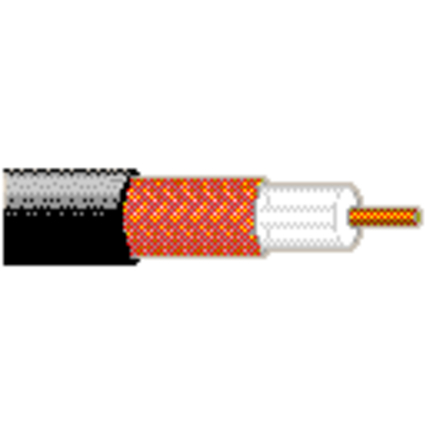

9244 - Analog Video, RG59, #22 Solid BCCS, 85% BC Braid, PVC Jacket, CMX

9244 – Analog Video, RG59, #22 Solid BCCS, 85% BC Braid, PVC Jacket, CMX

Call for Price

Compare
SKU: 9244 Categories: , , ,

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
22 Solid BCCS – Bare Copper Covered Steel 0.025 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
PE – Polyethylene 0.146 in
Outer Shield
Type Material Coverage [%]
Braid Bare Copper (BC) 85%
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.242 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
50 Ohm/1000ft 50 Ohm/1000ft 4.5 Ohm/1000ft 4.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
19.4 pF/ft
Inductance
Nominal Inductance
0.112 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
5-450 MHz 23 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.6 dB/100ft
10 MHz 1.1 dB/100ft
50 MHz 2.4 dB/100ft
100 MHz 3.4 dB/100ft
200 MHz 4.9 dB/100ft
400 MHz 7 dB/100ft
700 MHz 9.7 dB/100ft
900 MHz 11.1 dB/100ft
1000 MHz 12 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.54 ns/ft 66%
Power Rating
Frequency [MHz] Max. Power Rating [W] Nominal Power Rating [W]
50 MHz 470 W 470 W
100 MHz 310 W 310 W
300 MHz 160 W 160 W
500 MHz 115 W 115 W
1,000 MHz 76 W 76 W
Voltage
Non-UL Voltage Rating UL Voltage Rating
1700 V RMS 150 V RMS

Temperature Range

Non-UL Temp Rating: 80°C
Operating Temperature Range: -40°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 33 lbs/1000ft
Max. Pull Tension: 67 lbs
Min. Bend Radius/Minor Axis: 2.5 in

Standards

NEC/(UL) Compliance: CMX
CEC/C(UL) Compliance: CMX
UL AWM Style Compliance: AWM 1354 (30 V 80°C)
CPR Euroclass: Eca
RG Type: 59
Series Type: 59

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes
Suitability – Outdoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: VW-1
IEC Flammability: IEC 60332-1-2
UL voltage rating: 150 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
9244 010U500 Black UnReel 500 ft 612825358817
9244 0101000 Black Reel 1,000 ft 612825357704
9244 010U1000 Black UnReel 1,000 ft 612825357698

History

Update and Revision: Revision Number: 0.375 Revision Date: 12-19-2022
