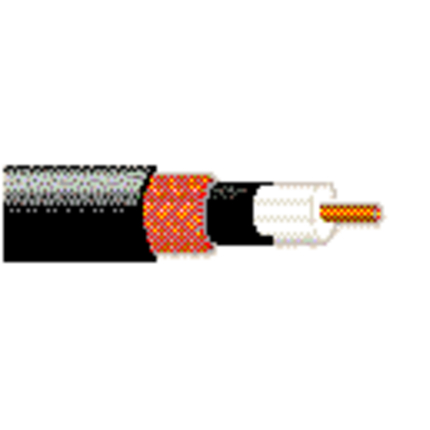

9224 - Audio Coax, Low Noise, RG-59, 22 AWG Solid BCCS, 95% BC Brd, PVC Jkt

9224 – Audio Coax, Low Noise, RG-59, 22 AWG Solid BCCS, 95% BC Brd, PVC Jkt

Call for Price

Compare
SKU: 9224 Categories: , , ,

Description

Product Overview

Suitable Applications: Low noise microphone, Analog audio, Instrumentation

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
22 Solid BCCS – Bare Copper Covered Steel 0.025 in 1
Conductor Count: 1
Insulation
Layer Material Nominal Diameter
1 PE – Polyethylene 0.146 in
2 PVC – Polyvinyl Chloride (Conductive) 0.154 in
Outer Shield
Type Material Coverage [%]
Braid Bare Copper (BC) 95%
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.242 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
54 Ohm/1000ft 54 Ohm/1000ft 2.5 Ohm/1000ft 2.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
22 pF/ft
Inductance
Nominal Inductance
0.124 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.56 ns/ft 65%
Voltage
Voltage Rating [V]
300 V RMS
Electrical Characteristics Notes: NBS Low Noise Test (Modified) MIL-C-17 Paragraph 4.8.14, 5 mV Peak to Peak Max

Temperature Range

Non-UL Temp Rating: 75°C
Operating Temperature Range: -40°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 36 lbs/1000ft
Max. Pull Tension: 80 lbs
Min. Bend Radius/Minor Axis: 2.4 in

Standards

CPR Euroclass: Eca
RG Type: 59

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Aerial: No
Suitability – Burial: No
Suitability – Hazardous Locations: No
Suitability – Indoor: Yes
Suitability – Outdoor: No
Suitability – Sunlight Resistance: No

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
9224 010U500 Black UnReel 500 ft 612825358145
9224 0101000 Black Reel 1,000 ft 612825357810

Product Notes

Notes: Not recommended for RF use. Nominal voltage breakdown conductor to shield: 30 kV rms. Nominal voltage breakdown jacket (shield to water): 30 kV rms.

History

Update and Revision: Revision Number: 0.240 Revision Date: 12-19-2022
