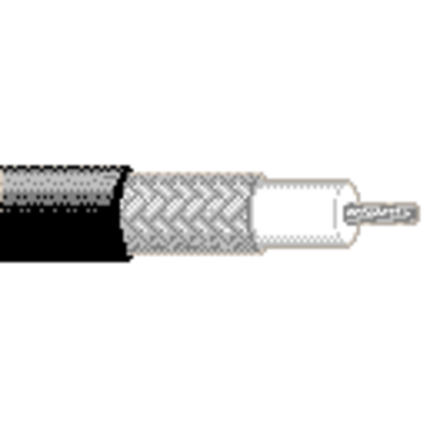

9203 - 50 Ohm Coax, RG58, 20 AWG Stranded TC, TC Braid, Non-contaminating PVC Jacket

9203 – 50 Ohm Coax, RG58, 20 AWG Stranded TC, TC Braid, Non-contaminating PVC Jacket

Call for Price

Compare
SKU: 9203 Categories: , , ,

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
20 Stranded TC – Tinned Copper 0.035 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
PE – Polyethylene 0.116 in
Outer Shield
Type Material Coverage [%]
Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride (Non-Contaminating) 0.195 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
10.8 Ohm/1000ft 10.8 Ohm/1000ft 4.1 Ohm/1000ft 4.1 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
30.8 pF/ft
Inductance
Nominal Inductance
0.077 µH/ft
Impedance
Nominal Characteristic Impedance
50 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.4 dB/100ft
10 MHz 1.4 dB/100ft
50 MHz 3.3 dB/100ft
100 MHz 4.9 dB/100ft
200 MHz 7.3 dB/100ft
400 MHz 11.5 dB/100ft
700 MHz 17 dB/100ft
900 MHz 20 dB/100ft
1000 MHz 21.5 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.54 ns/ft 66%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation)
50 MHz 4 dB/100ft
100 MHz 6.5 dB/100ft
400 MHz 17 dB/100ft
1000 MHz 28 dB/100ft
Power Rating
Frequency [MHz] Max. Power Rating [W]
50 MHz 300 W
100 MHz 200 W
400 MHz 90 W
1,000 MHz 55 W
Voltage
Non-UL Voltage Rating
1400 V RMS

Temperature Range

UL Temp Rating: 85°C
Operating Temperature Range: -40°C To +85°C

Mechanical Characteristics

Bulk Cable Weight: 25 lbs/1000ft
Max. Pull Tension: 42 lbs
Min. Bend Radius/Minor Axis: 2 in

Standards

CPR Euroclass: Fca
RG Type: 58
Military Compliance: MIL-DTL-17, M17/28, QPL

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
9203 010500 Black Reel 500 ft 612825225249
9203 0101000 Black Reel 1,000 ft 612825225232
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.344 Revision Date: 11-09-2022
