9201 - 50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid BC, 80% BC Braid, PVC Jkt

9201 – 50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid BC, 80% BC Braid, PVC Jkt

Call for Price

Compare
SKU: 9201 Categories: , , ,

Description

Product Overview

Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

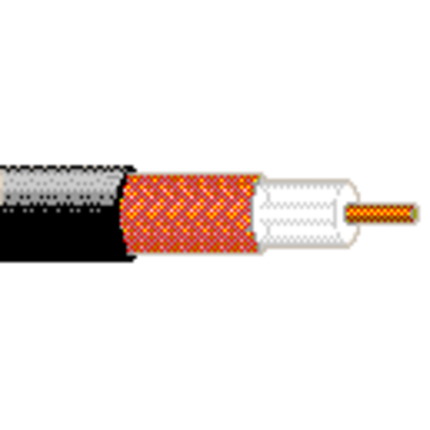

Construction Details

RG Type: 58
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 20 AWG Solid 0.033 in BC – Bare Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 0.116 in (2.95 mm) White
Outer Shield
Layer Outer Shield Type Material Coverage
1 Braid Bare Copper (BC) 80%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.193 in (4.90 mm)
Overall Cable Diameter (Nominal): 0.193 in (4.90 mm)

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
1 MHz 0.3 dB/100ft
10 MHz 1.1 dB/100ft
50 MHz 2.5 dB/100ft
100 MHz 3.8 dB/100ft
200 MHz 5.6 dB/100ft
400 MHz 8.4 dB/100ft
700 MHz 11.7 dB/100ft
900 MHz 13.7 dB/100ft
1000 MHz 14.5 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
10.3 Ohm/1000ft 7.1 Ohm/1000ft (23 Ohm/km) 28.5 pF/ft (93.5 pF/m) 52 Ohm 66%
Voltage
Voltage Rating
1400 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C -30°C To +80°C
Bend Radius
Stationary Min. Installation Min.
2 in (51 mm) 2 in (51 mm)
Max. Pull Tension: 72 lbs (33 kg)
Bulk Cable Weight: 23 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: PF_9201 (1)# Elements@Conductor1:-In Stibo it was Blank and now changed it to 1. (2)Size@Conductor1 :-In Stibo it was 20 now changed to 20 AWG (3)Color@Color Chart1 01 :- In stibo it was Blank now Changed to White (4)Coverage@OuterShield1 2 – in stibo it was 80% Now changed to 81% (5)Cable diameter- it was blank now changed to 0.193 in

History

Update and Revision: Revision Number: 0.488 Revision Date: 05-01-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
9201 010500 Black Reel 500 ft 612825225188
9201 010U500 Black UnReel 500 ft 612825225225
9201 0101000 Black Reel 1,000 ft 612825225218 C
9201 010U1000 Black UnReel 1,000 ft 612825225195
