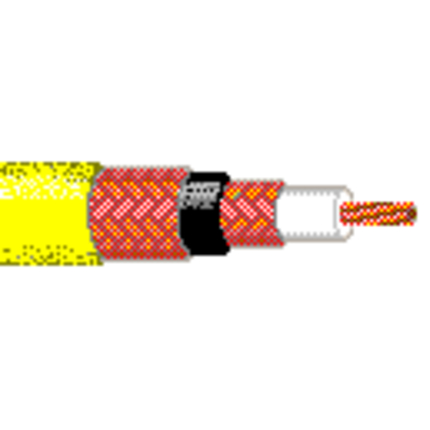

9192 - Video Triax, RG11, #15 Stranded, CL2X

9192 – Video Triax, RG11, #15 Stranded, CL2X

Call for Price

Compare
SKU: 9192 Categories: , , ,

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
15 19×27 BC – Bare Copper 0.064 in 1
Conductor Count: 1
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 0.312 in
Table Notes: Gas Injected
Inner Shield
Type Material Coverage [%]
Braid Bare Copper (BC) 90%
Inner Jacket
Material Nominal Diameter
PE – Polyethylene 0.391 in
Outer Shield
Type Material Coverage [%]
Braid Bare Copper (BC) 90%
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.52 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Inner Shield DCR Nominal Outer Shield DCR
3.1 Ohm/1000ft 3.1 Ohm/1000ft 1.6 Ohm/1000ft 1.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
17.3 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
5-850 MHz 21 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.1 dB/100ft
3.6 MHz 0.3 dB/100ft
10 MHz 0.5 dB/100ft
71.5 MHz 1.2 dB/100ft
135 MHz 1.8 dB/100ft
270 MHz 2.6 dB/100ft
360 MHz 3.1 dB/100ft
540 MHz 3.9 dB/100ft
720 MHz 4.7 dB/100ft
750 MHz 4.8 dB/100ft
1000 MHz 5.7 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.3 ns/ft 78%
Voltage
Non-UL Voltage Rating UL Voltage Rating Voltage Rating [V]
300 V RMS 150 V RMS 30 V RMS
30 V RMS
Electrical Characteristics Notes: Nominal Capacitance 1st Shield to 2nd Shield: 205 pf/ft.
Other Electrical Characteristic 2: Nominal Voltage Breakdown: 20K V RMS

Temperature Range

Non-UL Temp Rating: 75°C
UL Temp Rating: 80°C
Operating Temperature Range: -40°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 139 lbs/1000ft
Max. Pull Tension: 239 lbs
Min. Bend Radius/Minor Axis: 5.5 in

Standards

NEC/(UL) Compliance: CL2X
UL AWM Style Compliance: AWM 1641 (30 V 80°C)
CPR Euroclass: Eca
RG Type: 11

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes
Suitability – Outdoor: Yes – Black for permanent outdoor installations; all colors suitable for outdoor field deployable use

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading, VW-1
UL voltage rating: 150 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
9192 0041000 Yellow Reel 1,000 ft 612825225201
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.368 Revision Date: 12-19-2022
