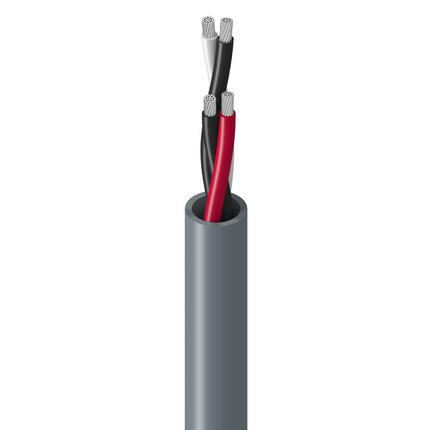

9156ZH - Electronic, 2 Pr #18 Str TC, PVC Ins, LSZH Jkt, CMG

9156ZH – Electronic, 2 Pr #18 Str TC, PVC Ins, LSZH Jkt, CMG

Call for Price

Compare
SKU: 9156ZH Categories: , , ,

Description

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 2 18 AWG 16×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP – Polypropylene 0.013 in (0.33 mm) 0.073 in (1.9 mm) Black & Red, Black & White
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 0.035 in (0.89 mm) 0.333 in
Overall Cable Diameter (Nominal): 0.333 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
7.2 Ohm/1000ft 17.5 pF/ft (57.4 pF/m) 11.2 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C -20°C to 75°C
Bend Radius
Stationary Min. Installation Min.
3.33 in (84.6 mm) 3.33 in
Max. Pull Tension: 83.2 lbs (37.7 kg)
Bulk Cable Weight: 65 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMG
AWM Compliance: AWM 21307
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.343 Revision Date: 05-05-2023
