Call for Price
| Suitable Applications: | Low Voltage Analog Signals (4-20ma, 0-10v, …); Low Voltage Digital Control (24v, ); Line Level Audio; Computer Communication; Panel Wiring |

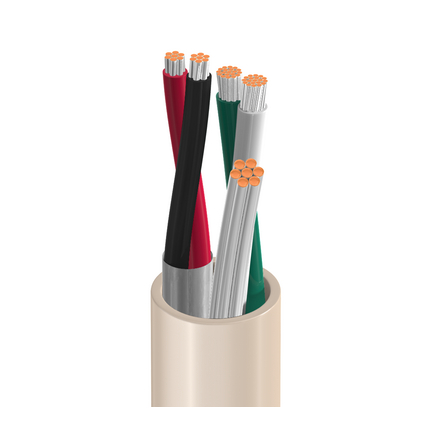

| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 20 AWG | 7×28 | TC – Tinned Copper |
| Conductor(s) | 2 | 18 AWG | 19×30 | TC – Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PE – Polyethylene | 0.021 in (0.53 mm) | 0.078 in (2.0 mm) | Black & Red |
| Conductor(s) | PE – Polyethylene | 0.021 in (0.53 mm) | 0.085 in (2.2 mm) | Green, White |
| Element | Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|---|
| Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7×30) TC |
| Conductor(s) | No Shield |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC – Polyvinyl Chloride | 0.031 in (0.79 mm) | 0.262 in (6.65 mm) |
| Overall Cable Diameter (Nominal): | 0.262 in (6.65 mm) |
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 10.5 Ohm/1000ft | 24 pF/ft (79 pF/m) | 46 pF/ft (150 pF/m) | 66 Ohm | 66% | 7 Amps per Conductor at 25°C (20 AWG); 9 Amps per Conductor at 25°C (18 AWG) |
| Conductor(s) | 6.6 Ohm/1000ft (22 Ohm/km) | 22 pF/ft (72 pF/m) | 66% | 9 Amps per conductor @ 25°C |
| UL Voltage Rating |
|---|
| 300 V (CM, UL AWM 2094) |
| UL Temperature | Operating |
|---|---|
| 60°C | -20°C to +60°C |
| Stationary Min. | Installation Min. |
|---|---|
| 2.6 in (66 mm) | 2.6 in (66 mm) |
| Max. Pull Tension: | 70 lbs (32 kg) |
| Bulk Cable Weight: | 45 lbs/1000ft |
| Environmental Suitability: | Indoor (Not Riser or Plenum), Indoor |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | UL 1685 UL loading , IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 800, CM |
| AWM Compliance: | AWM 2094 |
| CEC / C(UL) Compliance: | CM |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Update and Revision: | Revision Number: 0.508 Revision Date: 12-22-2023 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 9155 290500 | Beige, Light | Reel | 500 ft | 612825224846 | C |
| 9155 2901000 | Beige, Light | Reel | 1,000 ft | 612825224839 | C |
| 9155 290U1000 | Beige, Light | UnReel | 1,000 ft | 612825388142 | |
| 9155 2905000 | Beige, Light | Reel | 5,000 ft | 612825224815 | C |
