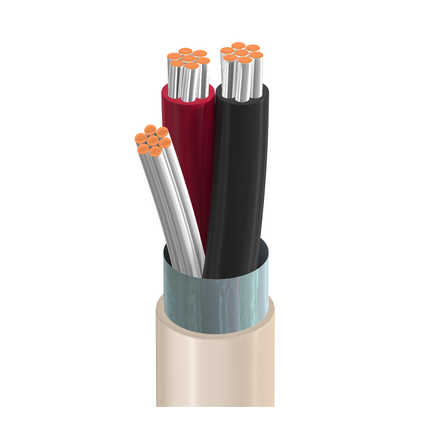

9154 - Electronic, 2 C #20 Str TC, PVC Ins, OS, PVC Jkt, CMG

9154 – Electronic, 2 C #20 Str TC, PVC Ins, OS, PVC Jkt, CMG

Call for Price

Compare
SKU: 9154 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 20 AWG 7×28 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.015 in (0.38 mm) 0.065 in (1.7 mm) Black, Red
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.031 in (0.79 mm) 0.198 in (5.03 mm)
Overall Cable Diameter (Nominal): 0.198 in (5.03 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Conductor(s) 9.5 Ohm/1000ft 60 pF/ft (200 pF/m) 100 pF/ft (330 pF/m) 36 Ohm 4 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
2.0 in (51 mm) 2.0 in (51 mm)
Max. Pull Tension: 34 lbs (15 kg)
Bulk Cable Weight: 20 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMG
AWM Compliance: AWM 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.530 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
9154 290500 Beige, Light Reel 500 ft 612825224778 C
9154 290U500 Beige, Light UnReel 500 ft 612825224754
9154 2901000 Beige, Light Reel 1,000 ft 612825224761 C
9154 290U1000 Beige, Light UnReel 1,000 ft 612825224747
9154 2905000 Beige, Light Reel 5,000 ft 612825224785
