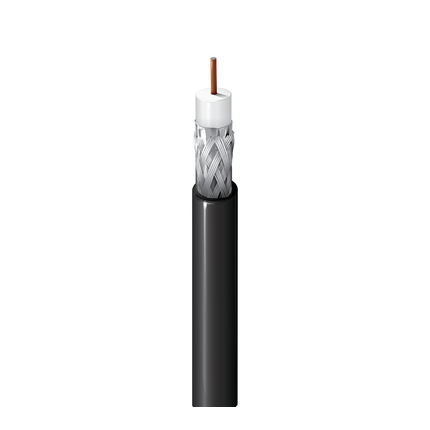

9116SB - 75 Ohm SDI Coax, RG-6, 18 AWG Solid BCCS, Foil + 60% AL Braid, LSZH Jkt, CMG-LS, ABS Certified

9116SB – 75 Ohm SDI Coax, RG-6, 18 AWG Solid BCCS, Foil + 60% AL Braid, LSZH Jkt, CMG-LS, ABS Certified

Call for Price

Compare
SKU: 9116SB Categories: , , ,

Description

Product Overview

Suitable Applications: Digital Video, HD-SDI 1080p, ABS approved for marine shipboard and offshore use

Construction Details

Series Type: 6
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 18 AWG Solid 0.04 in BCCS – Bare Copper Covered Steel
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.18 in (4.6 mm) White
Table Notes: Gas Injected
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Aluminum 57%
Outer Jacket
Material Nom. Diameter
PO – Polyolefin 0.274 in (6.96 mm)
Overall Cable Diameter (Nominal): 0.274 in (6.96 mm)

Electrical Characteristics

Return Loss (RL)
Frequency Min. Structural Return Loss
5-1000 MHz 20 dB
1000-2250 MHz 15 dB
2250-3000 MHz 10 dB
Attenuation
Frequency Max. Attenuation
5 MHz 0.67 dB/100ft
55 MHz 1.6 dB/100ft
211 MHz 2.87 dB/100ft
270 MHz 3.24 dB/100ft
300 MHz 3.43 dB/100ft
350 MHz 3.72 dB/100ft
400 MHz 4 dB/100ft
450 MHz 4.26 dB/100ft
5500 MHz 4.71 dB/100ft
750 MHz 5.59 dB/100ft
870 MHz 6 dB/100ft
1000 MHz 6.54 dB/100ft
1450 MHz 8.3 dB/100ft
1800 MHz 9.3 dB/100ft
2250 MHz 10.6 dB/100ft
3000 MHz 11.9 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
28 Ohm/1000ft (92 Ohm/km) 9 Ohm/1000ft (30 Ohm/km) 16.2 pF/ft (53.1 pF/m) 75 Ohm 83%
Voltage
UL Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
2.75 in (69.9 mm) 2.75 in (69.9 mm)
Max. Pull Tension: 126 lbs (57.2 kg)
Bulk Cable Weight: 28 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: UL1685 FT4 Loading, Limited Smoke, FT4, 1202, IEC 60332-1-2, IEC 60332-3-22
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMG-LS
CEC / C(UL) Compliance: CMG-LS
IEEE Compliance: Std. 45 clause 23
Marine Compliance: ABS Type Approval Certificate 19-HS1852547-PDA
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.491 Revision Date: 05-03-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
9116SB 0101000 Black Reel 1,000 ft 612825224556 C
