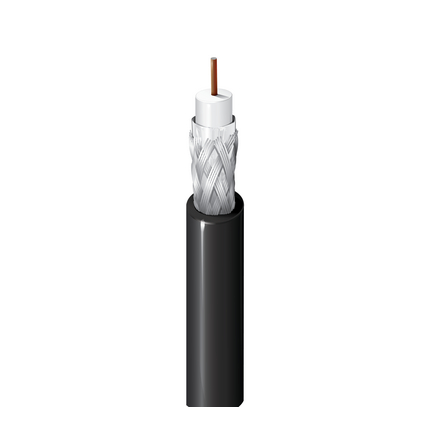

9116R - Broadband Coax, Series 6, 18 AWG Solid BCCS, Foil + 60% AL Braid, PVC Jkt, CMR

9116R – Broadband Coax, Series 6, 18 AWG Solid BCCS, Foil + 60% AL Braid, PVC Jkt, CMR

Call for Price

Compare
SKU: 9116R Categories: , , ,

Description

Product Overview

Suitable Applications: Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas

Construction Details

Series Type: 6
Conductor
Size Stranding Nom. Diameter Material
18 AWG Solid 0.040 in BCCS – Bare Copper Covered Steel
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.180 in (4.57 mm) White
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Aluminum 60%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.275 in (6.99 mm)
Overall Cable Diameter (Nominal): 0.275 in (6.99 mm)

Electrical Characteristics

Return Loss (RL)
Frequency Min. Structural Return Loss
5 – 1000 MHz 20 dB
Attenuation
Frequency Max. Attenuation
5 MHz 0.58 dB/100ft
55 MHz 1.60 dB/100ft
211 MHz 3.05 dB/100ft
250 MHz 3.30 dB/100ft
270 MHz 3.37 dB/100ft
300 MHz 3.55 dB/100ft
330 MHz 3.74 dB/100ft
350 MHz 3.85 dB/100ft
400 MHz 4.15 dB/100ft
450 MHz 4.40 dB/100ft
500 MHz 4.66 dB/100ft
550 MHz 4.90 dB/100ft
600 MHz 5.10 dB/100ft
750 MHz 5.65 dB/100ft
870 MHz 6.11 dB/100ft
1000 MHz 6.55 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
28 Ohm/1000ft 9 Ohm/1000ft (30 Ohm/km) 16.2 pF/ft (53.1 pF/m) 75 Ohm 83%
Voltage
UL Voltage Rating
350 V RMS (CMR, CMG)

Mechanical Characteristics

Temperature
Operating
-30°C to +80°C
Bend Radius
Installation Min.
3 in (76 mm)
Max. Pull Tension: 150 lbs (68 kg)
Bulk Cable Weight: 30 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor – Riser, Indoor, Outdoor, Sunlight Resistance, Aerial – Black only, When supported by messenger wire
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL1666 Vertical Riser
NEC / UL Compliance: CMR, CATVR, CMG
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): ANSI/SCTE 74
Plenum Number: 9116P

History

Update and Revision: Revision Number: 0.475 Revision Date: 04-14-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC
9116R 0101000 Black Reel 1,000 ft 612825224518
9116R 010U1000 Black UnReel 1,000 ft 612825224532
