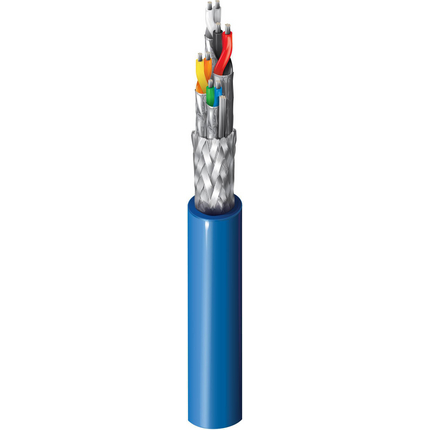

89892 - Transceiver 10BASE5, #20-4pr, FEP, PVC Jkt, CMP

89892 – Transceiver 10BASE5, #20-4pr, FEP, PVC Jkt, CMP

Call for Price

Compare
SKU: 89892 Categories: , , ,

Description

Product Overview

Suitable Applications: 10Base5 Transceiver

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
20 7×28 TC – Tinned Copper 4
Conductor Count: 8
Insulation
Material Material Trade Name Nominal Wall Thickness
FEP – Fluorinated Ethylene Propylene Teflon® 0.011 in
Color Chart
Number Color
1 Gray & White
2 Yellow & Orange
3 Blue & Green
4 Red & Black
Inner Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® (Z-Fold®) 100% TC – Tinned Copper 22 7×30
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Tinned Copper (TC) 95%
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Separator Material
PVDF – Polyvinylidene Fluoride 0.359 in 0.014 in Polyester Tape

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
9.5 Ohm/1000ft 1.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
16.7 pF/ft 29.5 pF/ft
Inductance
Nominal Inductance
0.2 µH/ft
Impedance
Nominal Characteristic Impedance Nominal Characteristic Tolerance
78 Ohm ± 5 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
10 MHz 6 dB/100m
Delay
Max. Delay Skew Nominal Delay Nominal Velocity of Propagation (VP) [%]
78 ns/100m 1.3 ns/ft 78%
High Frequency
Max. Insertion Loss (Attenuation)
6 dB/100m
Current
Max. Recommended Current [A]
2.8 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 150°C
Operating Temperature Range: -40°C To +150°C

Mechanical Characteristics

Bulk Cable Weight: 90 lbs/1000ft
Max. Pull Tension: 175 lbs
Min. Bend Radius/Minor Axis: 3.75 in

Standards

Customer Reference Document: DEC Part No. 17-00321-02
NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
IEEE Compliance: IEEE 802.3 10Base5

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
CSA Flammability: FT6
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Related Part Numbers

Non-Plenum Number: 9901
Variants
Item # Color UPC
89892 0011000 Brown 612825221388
89892 001500 Brown 612825221395
Footnote: C – CRATE REEL PUT-UP.

Product Notes

Notes: Teflon« is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

Update and Revision: Revision Number: 0.355 Revision Date: 05-05-2023
