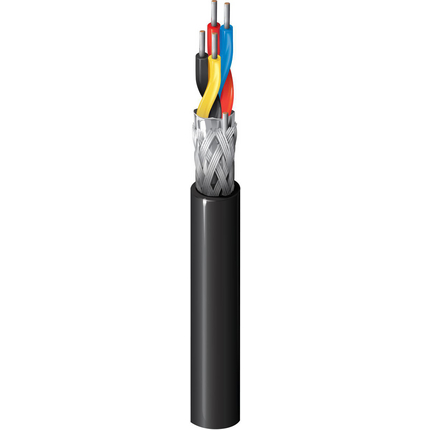

89855 - POS Cable, #22-2pr, TC, FEP, O/A Foil+55% TC Braid, FEP Jkt, CMP

89855 – POS Cable, #22-2pr, TC, FEP, O/A Foil+55% TC Braid, FEP Jkt, CMP

Call for Price

Compare
SKU: 89855 Categories: , , ,

Description

Product Overview

Suitable Applications: point of sale; rs-485 applications; extreme high/low temperature environments; computer communication; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 2 22 AWG Solid TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) FEP – Fluorinated Ethylene Propylene 0.016 in (0.41 mm) 0.058 in (1.5 mm) Red & Blue, Black & Yellow
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (Solid) TC
Braid Tinned Copper (TC) 56%
Table Notes: Polyester Tape
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
FEP – Fluorinated Ethylene Propylene 0.016 in (0.41 mm) 0.272 in Yes
Overall Cable Diameter (Nominal): 0.272 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
20.6 Ohm/1000ft 15.5 pF/ft (50.9 pF/m) 27 pF/ft (89 pF/m) 100 Ohm 70% 4.8 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
200°C -70°C to +200°C
Bend Radius
Stationary Min. Installation Min.
2.72 in (69.1 mm) 2.72 in
Max. Pull Tension: 65 lbs (29 kg)
Bulk Cable Weight: 38 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, UV Resistance, Oil Resistance
Flammability / Reaction to Fire: NFPA 262 (UL 910), FT6, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 9855

History

Update and Revision: Revision Number: 0.352 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color UPC Footnote
89855 0101000 Black 612825221357 C
