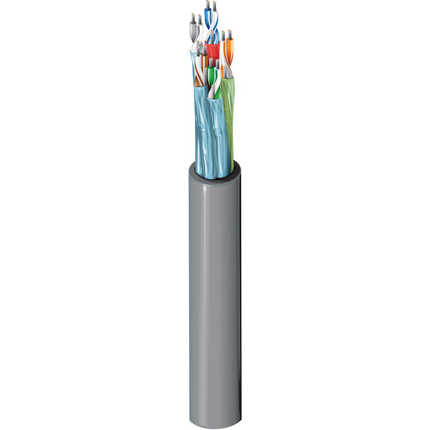

89705 - RS232/422 Low Cap, #24-5pr, FFEP, Indiv. Foil, PVDF Jkt, CMP, 100?

89705 – RS232/422 Low Cap, #24-5pr, FFEP, Indiv. Foil, PVDF Jkt, CMP, 100?

Call for Price

Compare
SKU: 89705 Categories: , , ,

Description

Product Overview

Suitable Applications: extreme high temperature environments; RS-232 extended distance applications; RS-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); digital audio; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 5 24 AWG 7×32 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Color Code
Pair(s) FEP – Fluorinated Ethylene Propylene (Foam) 0.019 in (0.48 mm) White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe
Red, Green, Blue
Inner Shield
Element Shield Type Material Coverage Drainwire Type Notes
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC each pair
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVDF – Polyvinylidene Fluoride 0.014 in (0.36 mm) 0.327 in (8.31 mm)
Overall Cable Diameter (Nominal): 0.327 in (8.31 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 24 Ohm/1000ft (79 Ohm/km) 13.5 pF/ft (44.3 pF/m) 22.5 pF/ft (73.8 pF/m) 100 Ohm 76% 2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Temperature Operating
150°C -40°C to +150°C
Max. Pull Tension: 165 lbs (74.8 kg)
Bulk Cable Weight: 53 lbs/1000ft (79 kg/km)

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: NFPA 262 Plenum Flame Test (UL910)
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.329 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color UPC Footnote
89705 0081000 Gray 612825221098 C
89705 008500 Gray 612825221104 C
