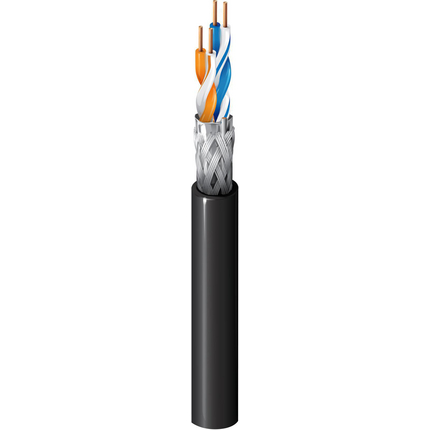

89696 - POS Cable, #22-2pr, BC, FEP, O/A Foil+55% TC Braid, FEP Jkt, CMP

89696 – POS Cable, #22-2pr, BC, FEP, O/A Foil+55% TC Braid, FEP Jkt, CMP

Call for Price

Compare
SKU: 89696 Categories: , , ,

Description

Product Overview

Suitable Applications: point of sale; rs-485 applications; extreme high/low temperature environments; computer communication; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; panel wiring

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
22 Solid TC – Tinned Copper 2
Conductor Count: 4
Insulation
Material Material Trade Name
FEP – Fluorinated Ethylene Propylene Teflon®
Color Chart
Number Color
1 Blue & White with Blue Stripe
2 Orange & White with Orange Stripe
Outer Shield
Type Layer Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape 1 Bi-Laminate (Alum+Poly) Beldfoil® 100% TC – Tinned Copper 22 Solid
Braid 2 Tinned Copper (TC) 55%
Table Notes: Polyester Tape
Outer Jacket
Material Material Trade Name Nominal Diameter
FEP – Fluorinated Ethylene Propylene Teflon® 0.262 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
16.5 Ohm/1000ft 4.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
15.5 pF/ft 27 pF/ft
Inductance
Nominal Inductance
0.15 µH/ft
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Max. Delay Skew Nominal Delay Nominal Velocity of Propagation (VP) [%]
69.5 ns/100m 1.46 ns/ft 70%
High Frequency
Frequency [MHz]
0.3 MHz
0.6 MHz
1 MHz
1.5 MHz
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temperature Range: -70°C To +200°C

Mechanical Characteristics

Bulk Cable Weight: 41.1 lbs/1000ft
Max. Pull Tension: 65 lbs
Min. Bend Radius/Minor Axis: 5.5 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Related Part Numbers

Non-Plenum Number: 9696
Variants
Item # Color UPC
89696 0101000 Black 612825221081
Footnote: C – CRATE REEL PUT-UP.

Product Notes

Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.

History

Update and Revision: Revision Number: 0.338 Revision Date: 12-22-2023
