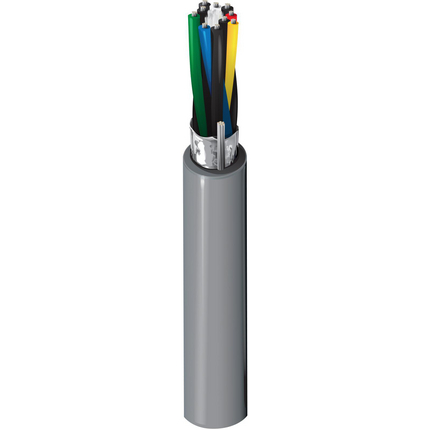

89505 - RS232, #24-5pr, FEP, O/A Foil, FEP Jkt, CMP

89505 – RS232, #24-5pr, FEP, O/A Foil, FEP Jkt, CMP

Call for Price

Compare
SKU: 89505 Categories: , , ,

Description

Product Overview

Suitable Applications: extreme high/low temperature environments; rs-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 5 24 7×32 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
FEP – Fluorinated Ethylene Propylene 0.006 in (0.15 mm) 0.036 in (0.91 mm) Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
FEP – Fluorinated Ethylene Propylene 0.015 in (0.38 mm) 0.199 in (5.05 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
28.8 Ohm/1000ft 21 pF/ft (69 pF/m) 40 pF/ft (130 pF/m) 1.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
150°C -70°C To +150°C
Bend Radius
Stationary Min. Installation Min.
1.99 in (50.5 mm) 1.99 in (50.5 mm)
Max. Pull Tension: 61 lbs (28 kg)
Bulk Cable Weight: 30 lbs/1000ft

Standards and Compliance

Environmental Suitability: Outdoor, Sunlight Resistance, Oil Resistance
Flammability / Reaction to Fire: NFPA 262 (UL910), FT6, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 9505

History

Update and Revision: Revision Number: 0.434 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color UPC Footnote
89505 002100 Red 612825221043 C
89505 0021000 Red 612825221050 C
