89463 - Blue Hose®, 1 Pr #20 Str TC, FEP Ins Blu, Clr, Foil+TC Brd, FEP Jkt, CMP

89463 – Blue Hose®, 1 Pr #20 Str TC, FEP Ins Blu, Clr, Foil+TC Brd, FEP Jkt, CMP

Call for Price

Compare
SKU: 89463 Categories: , , ,

Description

Product Overview

Suitable Applications: extreme temp, exposure to oil and gasoline, harsh environment, Allen Bradley Data Highway communication interface between PLC processors, I/O devices, operator interfaces, computers and other intelligent devices, PLC processor interlocking, peer-to-peer messaging, remote programming, troubleshooting, I/O updates, etc.

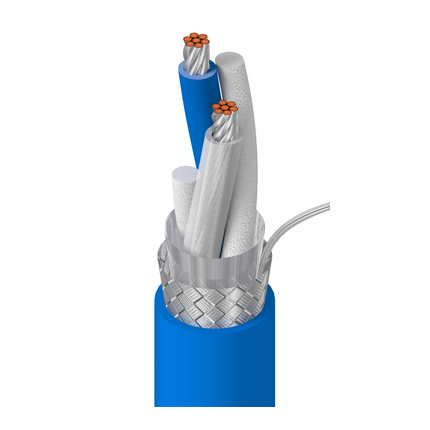

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 20 AWG 7×28 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Pair(s) FEP – Fluorinated Ethylene Propylene 0.0175 in (0.445 mm) 0.073 in (1.9 mm) Clear & Blue Twinax with rod fillers
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7×28) TC
Braid Tinned Copper (TC) 76%
Outer Jacket
Material Nom. Thickness Nom. Diameter
FEP – Fluorinated Ethylene Propylene 0.015 in (0.38 mm) 0.203 in (5.16 mm)
Overall Cable Diameter (Nominal): 0.203 in (5.16 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence Nom. Velocity of Prop.
Pair(s) 9.5 Ohm/1000ft 19.7 pF/ft (64.6 pF/m) 37 pF/ft 78 Ohm 69%
Nom. Outer Shield DCR: 4.1 Ohm/1000ft (13 Ohm/km)
High Frequency (Nominal/Typical)
Element Frequency [MHz] Nom. Insertion Loss (Attenuation)
Pair(s) 1 0.6 dB/100ft
10 2.1 dB/100ft
50 5 dB/100ft
100 7.5 dB/100ft
200 11 dB/100ft
400 16 dB/100ft
Voltage
UL Voltage Rating
300 V (CMP, CL2P)

Mechanical Characteristics

Temperature
UL Temperature Operating
200°C -70°C to +200°C
Bend Radius
Stationary Min. Installation Min.
2.5 in (64 mm) 2.5 in (64 mm)
Max. Pull Tension: 48 lbs (22 kg)
Bulk Cable Weight: 34 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 725, Article 800
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): Allen Bradley Part No. 1770-CD
Non-Plenum Number: 9463

History

Update and Revision: Revision Number: 0.491 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
89463 0061000 Blue, Light Reel 1,000 ft 612825220978 C
89463 0062500 Blue, Light Reel 2,500 ft 612825220985 C
