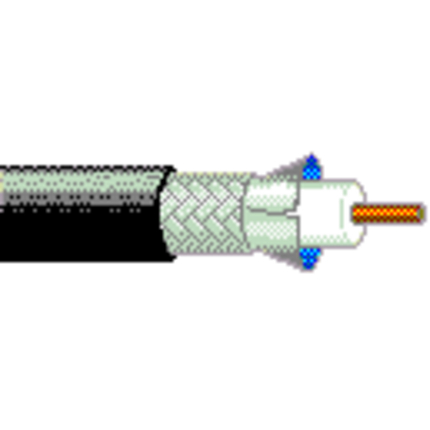

Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Nominal Diameter |
No. of Coax |
| 14 |
Solid |
BC – Bare Copper |
0.064 in |
1 |
| Material |
Nominal Diameter |
| FEP – Fluorinated Ethylene Propylene (Foam) |
0.274 in |
| Type |
Layer |
Material |
Material Trade Name |
Coverage [%] |
| Tape |
1 |
Tri-Laminate (Alum+Poly+Alum) |
Duofoil® |
100% |
| Braid |
2 |
Tinned Copper (TC) |
|
65% |
| Material |
Material Trade Name |
Nominal Diameter |
| FEP – Fluorinated Ethylene Propylene |
Teflon® |
0.346 in |
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Conductor DCR Conductor Resistance |
Nominal Outer Shield DCR |
Outer Conductor DCR |
| 2.5 Ohm/1000ft |
2.5 Ohm/1000ft |
3 Ohm/1000ft |
3 Ohm/1000ft |
| Nom. Capacitance Conductor to Shield |
| 16.2 pF/ft |
| Nominal Inductance |
| 0.091 µH/ft |
| Nominal Characteristic Impedance |
| 75 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] |
Nom. Insertion Loss |
Nom. Structural Return Loss (SRL) |
| 1 MHz |
0.2 dB/100ft |
23 dB |
| 450 MHz |
0.4 dB/100ft |
|
| 5 MHz |
1 dB/100ft |
|
| 100 MHz |
1.5 dB/100ft |
|
| 200 MHz |
2.2 dB/100ft |
|
| 400 MHz |
3.3 dB/100ft |
|
| 700 MHz |
4.5 dB/100ft |
|
| 900 MHz |
5.2 dB/100ft |
|
| 1000 MHz |
5.5 dB/100ft |
|
| Nominal Delay |
Nominal Velocity of Propagation (VP) [%] |
| 1.22 ns/ft |
83% |
| UL Voltage Rating |
| 300 V RMS |
Temperature Range
| Non-UL Temp Rating: |
200°C |
| Operating Temperature Range: |
-70°C To +200°C |
Mechanical Characteristics
| Bulk Cable Weight: |
73 lbs/1000ft |
| Max. Pull Tension: |
97 lbs |
| Min. Bend Radius/Minor Axis: |
4 in |
Standards
| NEC/(UL) Compliance: |
CATVP, CMP |
| CEC/C(UL) Compliance: |
CMP |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor – Plenum |
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2003/11/EC (BFR): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): |
Yes |
| EU Directive Compliance: |
EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS): |
Yes |
Suitability
| Suitability – Indoor: |
Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability: |
NFPA 262 |
| UL voltage rating: |
300 V RMS |
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
UPC |
| 89292 010500 |
Black |
Reel |
500 ft |
612825221456 |
| 89292 0101000 |
Black |
Reel |
1,000 ft |
612825220923 |
| Footnote: |
C – CRATE REEL PUT-UP. |
Product Notes
| Notes: |
Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc. |
History
| Update and Revision: |
Revision Number: 0.355 Revision Date: 04-14-2023 |
