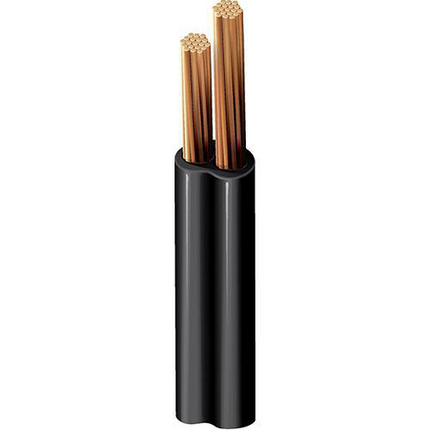

8888 - Portable Cordage, 2 C #18 Str BC, PVC Ins, UL Type SPT-1

8888 – Portable Cordage, 2 C #18 Str BC, PVC Ins, UL Type SPT-1

Call for Price

Compare
SKU: 8888 Categories: , , , ,

Description

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 2 18 AWG 42×34 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC – Polyvinyl Chloride 0.032 in (0.81 mm) 0.11 x 0.207 in mm Brown
Outer Shield
Material
No Shield

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
4.17 Ohm/1000ft 15 Amps per Conductor at 25ºC (7 Amps over 50 ft)
7 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature
60°C
Bend Radius
Stationary Min. Installation Min.
1.1 in (28 mm) 1.1 in
Max. Pull Tension: 41 lbs (19 kg)
Bulk Cable Weight: 20 lbs/1000ft

Standards and Compliance

NEC / UL Compliance: Article 400, SPT-1
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.295 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC
8888 001250 Brown Reel 250 ft 612825217503
8888 001U1000 Brown Reel 1,000 ft 612825217497
