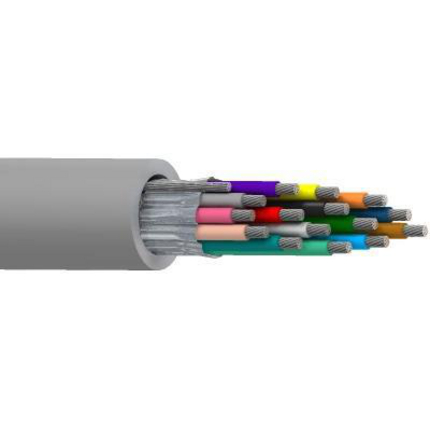

8886MN - SpaceMaker™, 15 C #22 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

8886MN – SpaceMaker™, 15 C #22 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

Call for Price

Compare
SKU: 8886MN Categories: , , ,

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Conductors
22 19×34 TC – Tinned Copper 15
Conductor Count: 15
Insulation
Material Nominal Wall Thickness
PP – Polypropylene 0.016 in
Color Chart
Color
Black
White
Red
Dark Green
Brown
Dark Blue
Orange
Yellow
Purple
Gray
Pink
Tan
Aqua
Light Green
Light Blue
Outer Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC – Tinned Copper 22
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC – Polyvinyl Chloride 0.271 in 0.016 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
14.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Shield
33.0 pF/ft 66.0 pF/ft
Inductance
Nominal Inductance
0.031 µH/ft
Impedance
Nominal Characteristic Impedance
22 Ohm
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 80°C
Operating Temperature Range: -20°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 74 lbs/1000ft
Max. Pull Tension: 77 lbs
Min. Bend Radius During Installation: 1.080 in
Min. Bend Radius (Continuous Flexing): 2.710 in

Standards

UL AWM Style Compliance: AWM 2937 (300 V 80C)

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: Yes
EU CE Mark: Yes

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

CSA Flammability: FT2
UL voltage rating: 300 V RMS

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
8886MN 006100 Blue, Light Reel 100 ft 612825393047
8886MN 0061000 Blue, Light Reel 1,000 ft 612825393054
8886MN 008100 Gray Reel 100 ft 612825393061
8886MN 0081000 Gray Reel 1,000 ft 612825393078
8886MN 004100 Yellow Reel 100 ft 612825393023
8886MN 0041000 Yellow Reel 1,000 ft 612825393030

History

Update and Revision: Revision Number: 0.219 Revision Date: 05-05-2023
