Description
Product Overview
| Suitable Applications: | extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, ); line level audio; wet locations; panel wiring |

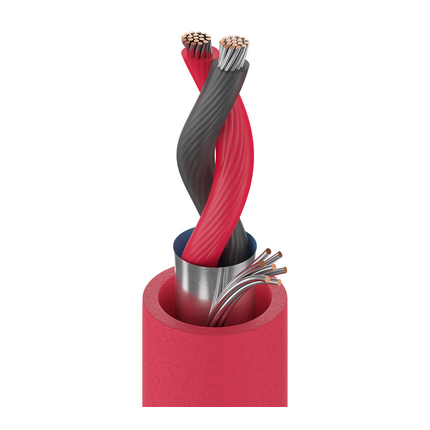

Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 18 AWG | 19×30 | TC – Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | FEP – Fluorinated Ethylene Propylene | 0.007 in (0.18 mm) | 0.057 in (1.4 mm) | Black, Red |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 20 AWG (7×28) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| FEP – Fluorinated Ethylene Propylene | 0.015 in (0.38 mm) | 0.148 in (3.76 mm) |
| Overall Cable Diameter (Nominal): | 0.148 in (3.76 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 7.06 Ohm/1000ft | 51 pF/ft (170 pF/m) | 97 pF/ft (320 pF/m) | 29 Ohm | 69% | 17 Amps per Conductor at 30ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMP) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 150°C | -20°C to +150°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.5 in (38 mm) | 1.5 in (38 mm) |
| Max. Pull Tension: | 62 lbs (28 kg) |
| Bulk Cable Weight: | 22 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor, Outdoor, Sunlight Resistance, Oil Resistance, Oil Resistance, Burial |
| Flammability / Reaction to Fire: | NFPA 262, UL 910 (Plenum), FT6, IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 800, CMP |
| CEC / C(UL) Compliance: | CMP |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| Non-Plenum Number: | 8760 |
Product Notes
| Notes: | For use in indoor plenum environments but also suitable for outdoor and underground applications. Gas/vapor-tight jacket. |
History
| Update and Revision: | Revision Number: 0.589 Revision Date: 02-15-2024 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 88760 002100 | Red | Reel | 100 ft | 612825217275 | |
| 88760 002500 | Red | Reel | 500 ft | 612825217312 | C |
| 88760 002U500 | Red | UnReel | 500 ft | 612825217268 | |
| 88760 0021000 | Red | Reel | 1,000 ft | 612825217282 | C |
| 88760 002U1000 | Red | UnReel | 1,000 ft | 612825217251 | |
| 88760 0025000 | Red | Reel | 5,000 ft | 612825217329 | |
| 88760 00210000 | Red | Reel | 10,000 ft | 612825217299 | C Z |
| 88760 00220000 | Red | Reel | 20,000 ft | 612825217305 | C Y |
