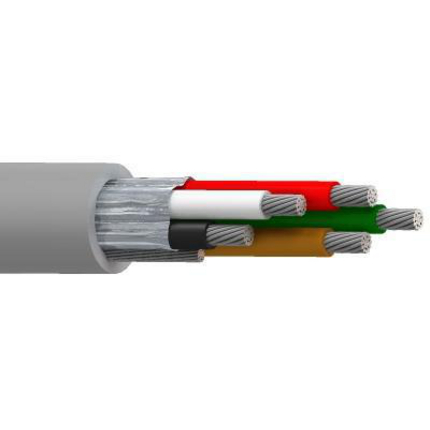

8870MN - SpaceMaker™, 5 C #18 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

8870MN – SpaceMaker™, 5 C #18 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

Call for Price

Compare
SKU: 8870MN Categories: , , ,

Description

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 5 18 AWG 41×34 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PP – Polypropylene 0.010 in (0.25 mm) 0.067 in (1.7 mm) Black, White, Red, Dark Green, Brown
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 18 AWG (19x30H) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.016 in (0.41 mm) 0.217 in
Overall Cable Diameter (Nominal): 0.217 in.

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
7.06 Ohm/1000ft 4 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature
80°C
Bend Radius
Stationary Min. Installation Min.
0.868 in (22.0 mm) 0.868 in
Max. Pull Tension: 127.2 lbs (57.70 kg)
Bulk Cable Weight: 42 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire: FT2
AWM Compliance: AWM 2937
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.194 Revision Date: 05-05-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC
8870MN 006100 Blue, Light Reel 100 ft 612825390879
8870MN 0061000 Blue, Light Reel 1,000 ft 612825390848
8870MN 008100 Gray Reel 100 ft 612825390886
8870MN 0081000 Gray Reel 1,000 ft 612825390855
8870MN 004100 Yellow Reel 100 ft 612825390862
8870MN 0041000 Yellow Reel 1,000 ft 612825390831
