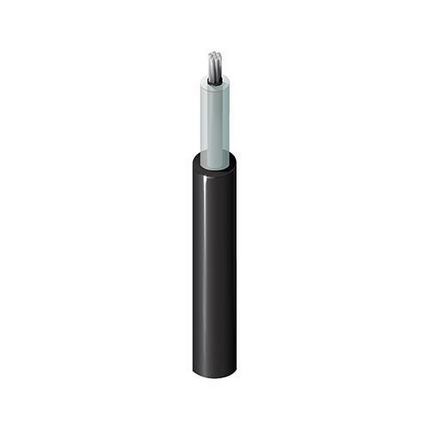

Product Overview
| Suitable Applications: |
internal wiring of electronic equipments, high voltage applications |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Conductors |
| 22 |
7×30 |
TC – Tinned Copper |
1 |
| Material |
Nominal Wall Thickness |
| PE – Polyethylene |
0.044 in |
| Table Notes: |
.003 in. conductive polyethylene over stranding. |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
0.15 in |
0.015 in |
|
0.15 in |
|
Electrical Characteristics
| Breakdown Voltage |
Non-UL Description |
Non-UL Voltage Rating |
| 48,000 V (DC) |
|
24,000 V DC |
|
AC (60 Hertz) |
9000 V RMS |
Temperature Range
Mechanical Characteristics
| Bulk Cable Weight: |
10 lbs/1000ft |
| Min. Bend Radius/Minor Axis: |
2.25 in |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2003/96/EC (BFR): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): |
Yes |
| EU Directive Compliance: |
EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS): |
Yes |
Flammability, LS0H, Toxicity Testing
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
UPC |
| 8868 002500 |
Red |
Reel |
500 ft |
612825217138 |
| 8868 002U500 |
Red |
Reel |
500 ft |
612825217121 |
Product Notes
| Notes: |
*This cable is recommended for applications in which the source is power limited so that if a cable failure occurs the source limits the energy transfer to a value of less than that required to raise the conductor temperature to 90°C. |
History
| Update and Revision: |
Revision Number: 0.386 Revision Date: 05-05-2023 |
