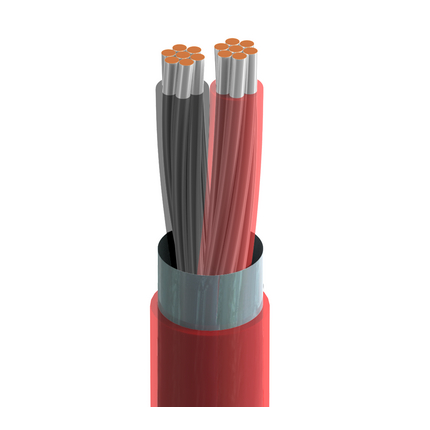

88641 - Electronic, 2 C #24 Str TC, FEP Ins, OS, FEP Jkt, CMP

88641 – Electronic, 2 C #24 Str TC, FEP Ins, OS, FEP Jkt, CMP

Call for Price

Compare
SKU: 88641 Categories: , , ,

Description

Product Overview

Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 24 AWG 7×32 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) FEP – Fluorinated Ethylene Propylene 0.006 in (0.15 mm) 0.036 in (0.91 mm) Black & Red
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (7×32) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
FEP – Fluorinated Ethylene Propylene 0.015 in (0.38 mm) 0.106 in (2.69 mm)
Overall Cable Diameter (Nominal): 0.106 in (2.69 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Pair(s) 28.8 Ohm/1000ft 31 pF/ft (100 pF/m) 59 pF/ft (190 pF/m) 3.8 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Temperature Operating
150°C -20°C to +150°C
Bend Radius
Stationary Min. Installation Min.
1.1 in (28 mm) 1.1 in (28 mm)
Max. Pull Tension: 16.5 lbs (7.48 kg)
Bulk Cable Weight: 10 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Oil Resistance, Burial
Sustainability: CA Prop 65
Flammability / Reaction to Fire: NFPA 262, UL 910 (Plenum), IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 82641
Non-Plenum Number: 8641

History

Update and Revision: Revision Number: 0.521 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
88641 002100 Red Reel 100 ft 612825217053
88641 002500 Red Reel 500 ft 612825217077 C
88641 0021000 Red Reel 1,000 ft 612825217060 C
