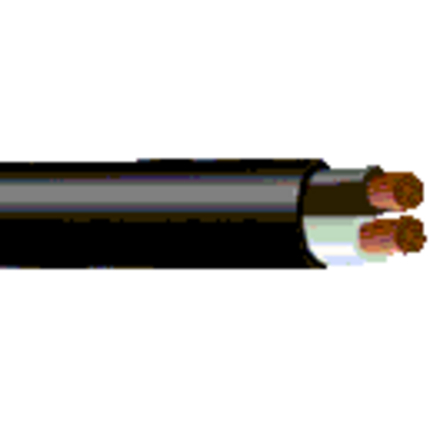

Product Overview
| Suitable Applications: |
Auditorium, Stadium, Race Track, Church, Temple, Synagogue, Place Of Assembly, Casino, Sound |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Conductors |
| 8 |
19×21.5 |
BC – Bare Copper |
2 |
| Layer |
Material |
| 1 |
PVC – Polyvinyl Chloride |
| 2 |
Nylon |
| Material |
Nominal Diameter |
| PVC – Polyvinyl Chloride |
0.57 in |
Electrical Characteristics
| Nominal Conductor DCR |
| 0.66 Ohm/1000ft |
Temperature Range
| Operating Temperature Range: |
-30°C To +90°C Dry; -30°C To +75°C Wet |
| Wet Temp Range: |
-30°C To +75 °C |
| Dry Temp Range: |
-30°C To +90°C Dry |
Mechanical Characteristics
| Bulk Cable Weight: |
180 lbs/1000ft |
| Max. Pull Tension: |
352 lbs |
| Min. Bend Radius/Minor Axis: |
5.75 in |
Standards
| NEC/(UL) Compliance: |
NPLF, TC, THHN/THWN Singles |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor/Outdoor |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive Compliance: |
EU Directive 2002/96/EC (WEEE) |
Suitability
| Suitability – Burial: |
Yes |
| Suitability – Indoor: |
Yes |
| Suitability – Outdoor: |
Yes |
| Suitability – Sunlight Resistance: |
Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability: |
UL1581 Vertical Tray |
| IEC Flammability: |
IEC 60332-1-2 |
| UL voltage rating: |
600 V RMS |
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
UPC |
| 8808 0101000 |
Black |
Reel |
1,000 ft |
612825408895 |
| 8808 0105000 |
Black |
Reel |
5,000 ft |
612825216582 |
History
| Update and Revision: |
Revision Number: 0.352 Revision Date: 02-15-2024 |
