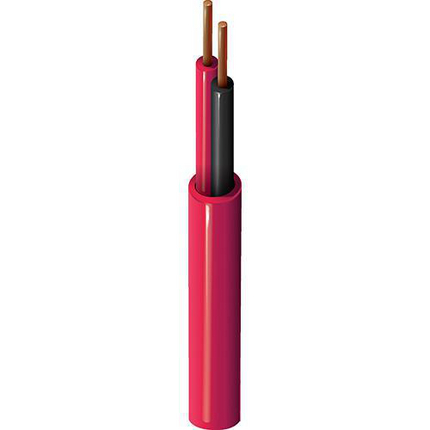

8794 - Electronic, 3 C #22 Sol BC, PO Ins, PVC Jkt, CM

8794 – Electronic, 3 C #22 Sol BC, PO Ins, PVC Jkt, CM

Call for Price

Compare
SKU: 8794 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 22 AWG Solid BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PE – Polyethylene 0.018 in (0.46 mm) 0.062 in (1.6 mm) Green, Red, Yellow
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.022 in (0.56 mm) 0.178 in
Overall Cable Diameter (Nominal): 0.178 in.

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Velocity of Prop. Max. Current
18.36 Ohm/1000ft 16 pF/ft (52 pF/m) 66% 3 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -30°C To +60°C
Bend Radius
Stationary Min. Installation Min.
1.78 in (45.2 mm) 1.78 in
Max. Pull Tension: 25.2 lbs (11.4 kg)
Bulk Cable Weight: 21 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire: UL 1685 UL Loading
NEC / UL Compliance: Article 800, CM
AWM Compliance: AWM 2093
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.392 Revision Date: 05-05-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8794 6061000 Gray, Rose Reel 1,000 ft 612825216520 C
8794 606U1000 Gray, Rose UnReel 1,000 ft 612825216513
