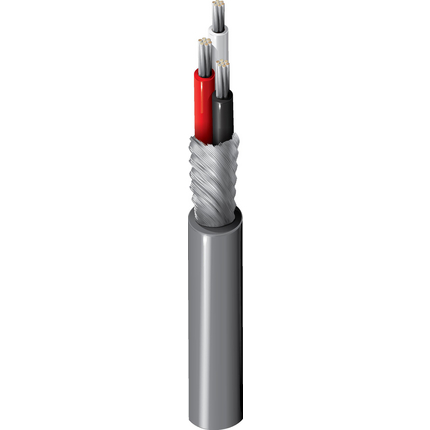

8791 - Electronic, 3 C #18 Str TC, PVC Ins, OA TC Srv, PVC Jkt

8791 – Electronic, 3 C #18 Str TC, PVC Ins, OA TC Srv, PVC Jkt

Call for Price

Compare
SKU: 8791 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 18 AWG 7×26 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.022 in (0.56 mm) 0.090 in (2.3 mm) Black, Red, White
Outer Shield
Shield Type Material Coverage
Spiral Serve / Screen Tinned Copper (TC) 80%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.028 in (0.71 mm) 0.260 in (6.60 mm)
Overall Cable Diameter (Nominal): 0.260 in (6.60 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 7.06 Ohm/1000ft 47 pF/ft (150 pF/m) 84 pF/ft (280 pF/m) 8 Amps per Conductor at 30ºC
Voltage
Voltage Rating
450 V

Mechanical Characteristics

Temperature
Operating
-30°C to +75°C
Bend Radius
Stationary Min. Installation Min.
2.6 in (66 mm) 2.6 in (66 mm)
Max. Pull Tension: 85 lbs (39 kg)
Bulk Cable Weight: 42 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.503 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8791 060500 Chrome Reel 500 ft 612825216490 C
8791 0601000 Chrome Reel 1,000 ft 612825216483 C
8791 060U1000 Chrome UnReel 1,000 ft 612825216476
8791 0605000 Chrome Reel 5,000 ft 612825216506 C Z
