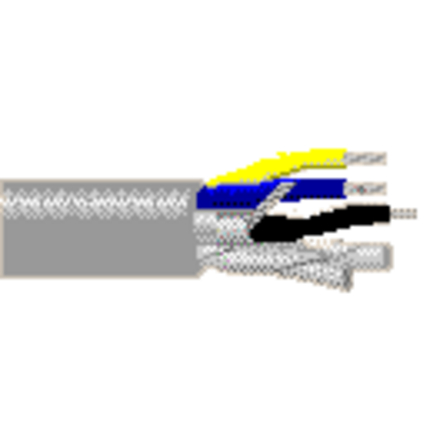

8788 – Audio, Control and Instrumentation, 5 Conductor 22 AWG (3C Indiv. Shielded Quads; 2C Unshielded), CM

Call for Price

parts-139

Test

$354.90

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 22 AWG 7×30 TC – Tinned Copper
Conductor(s) 2 22 AWG 7×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.0155 in (0.394 mm) 0.060 in (1.5 mm) Black (shielded), Red (shielded), Green (shielded)
Conductor(s) PVC – Polyvinyl Chloride 0.0155 in (0.394 mm) 0.060 in (1.5 mm) Yellow, LBlue
Inner Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
No Shield
Table Notes: Non-hygroscopic Filler
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride .028 in (0.71 mm) 0.236 in Yes
Overall Cable Diameter (Nominal): 0.236 in.

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
17.8 Ohm/1000ft 34 pF/ft (110 pF/m) 3 Amps per Conductor at 25ºC
3 Amps per Conductor at 25ºC (22 AWG)
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -20°C To +60°C
Bend Radius
Stationary Min. Installation Min.
2.36 in (59.9 mm) 2.36 in
Max. Pull Tension: 45.5 lbs (20.6 kg)
Bulk Cable Weight: 31 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire: UL 1685 UL Loading
NEC / UL Compliance: Article 800, CM
European Directive Compliance: EU CE Mark

Product Notes

Notes: (2) Unshielded conductors cabled around a non-hygroscopic filler. Drain wire for each conductor is tinned cadmium bronze ribbon under 100% Beldfoil« shield coverage.

History

Update and Revision: Revision Number: 0.346 Revision Date: 12-20-2022

Part Numbers

Variants
Item # Color Putup Type Length UPC
8788 060500 Chrome Reel 500 ft 612825216445
