| Suitable Applications: | low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, ); line level audio; computer communication; panel wiring |
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 8 | 24 AWG | 7×32 | TC – Tinned Copper |
| Conductor(s) | 2 | 22 AWG | 7×30 | TC – Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PE – Polyethylene | 0.012 in (0.30 mm) | 0.048 in (1.2 mm) | Red Quad, White, Green Quad, Blue |
| Conductor(s) | PVC – Polyvinyl Chloride | 0.015 in (0.38 mm) | 0.060 in (1.5 mm) | Gray, White, Blue, Green, Red Beldfoil®, Brown, Red, Yellow, Orange, Green Beldfoil®, White, Blue, Unshielded |
| Element | Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|---|
| Over Quad | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
| Over Quad | Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
| Table Notes: | Gray, White, Blue, Green; Brown, Red, Yellow, Orange; White, Blue |
| Material |
|---|
| No Shield |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC – Polyvinyl Chloride | 0.03 in (0.76 mm) | 0.29 in |
| Overall Cable Diameter (Nominal): | 0.29 in. |
| Nom. Conductor DCR | Nom. Inner Shield DCR | Max. Current |
|---|---|---|
| 28.7 Ohm/1000ft | 15.79 Ohm/1000ft (51.80 Ohm/km) | 1.5 Amps per Conductor at 25°C (24 AWG) |
| 15 Ohm/1000ft (49 Ohm/km) | 15.79 Ohm/1000ft (51.80 Ohm/km) | 3 Amps per Conductor at 25ºC (22 AWG) |
| Voltage Rating |
|---|
| 350 V |
| Operating |
|---|
| -20°C To +80°C |
| Stationary Min. | Installation Min. |
|---|---|
| 2.9 in (74 mm) | 2.9 in |
| Max. Pull Tension: | 51.2 lbs (23.2 kg) |
| Bulk Cable Weight: | 45 lbs/1000ft |
| Environmental Suitability: | Indoor (Not Riser or Plenum), Indoor |
| Flammability / Reaction to Fire: | VW-1, IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |

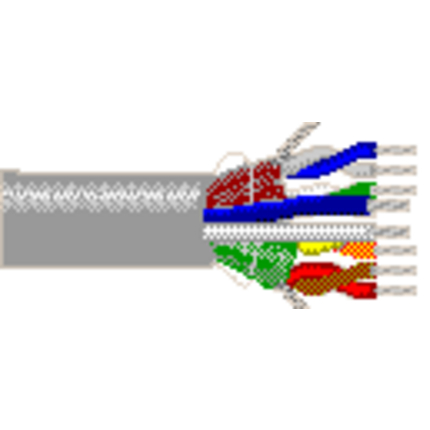

| Notes: | Inner Beldfoil« shield over 24 AWG quads. Each quad wrapped in transparent polyester tape. Red Beldfoil« shield over one quad, Green Beldfoil« shield over the other. (2) quads and (2) unshielded conductors cabled. |
| Update and Revision: | Revision Number: 0.359 Revision Date: 12-20-2022 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8787 060500 | Chrome | Reel | 500 ft | 612825216391 | C |
| 8787 060U500 | Chrome | UnReel | 500 ft | 612825216414 |
