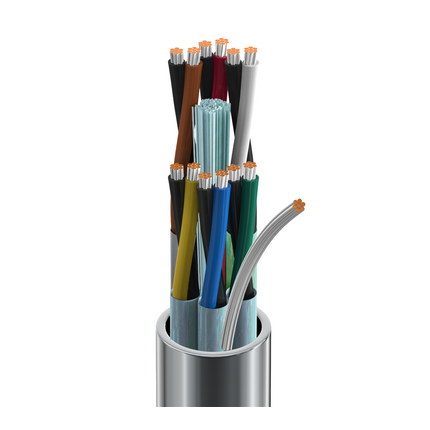

8778 - Audio, Control & Instrument, #22-6pr, PP, Indiv. Foil, PVC Jkt, CM

8778 – Audio, Control & Instrument, #22-6pr, PP, Indiv. Foil, PVC Jkt, CM

Call for Price

Compare
SKU: 8778 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 6 22 AWG 7×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP – Polypropylene 0.011 in (0.28 mm) 0.05 in (1.3 mm) Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown
Inner Shield
Element Shield Type Material Coverage Drainwire Type Notes
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC each pair
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.034 in (0.86 mm) 0.352 in (8.94 mm)
Overall Cable Diameter (Nominal): 0.352 in (8.94 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 18.2 Ohm/1000ft 12.39 Ohm/1000ft (40.65 Ohm/km) 30 pF/ft (98 pF/m) 55 pF/ft (180 pF/m) 50 Ohm 66% 1.96 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CM), 30 V (UL AWM 2919)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
3.5 in (89 mm) 3.5 in (89 mm)
Max. Pull Tension: 127 lbs (57.6 kg)
Bulk Cable Weight: 70 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance: Article 800, CM
AWM Compliance: AWM 2919
CEC / C(UL) Compliance: CM
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Plenum Number: 88778, 82778, 87778

History

Update and Revision: Revision Number: 0.604 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC/EAN Footnote
8778.0130 Chrome Reel 30 m 8719605019660
8778 060100 Chrome Reel 100 ft 612825216247
8778.00152 Chrome Reel 152 m 8719605019646
8778 060250 Chrome Reel 250 ft 612825216261 C
8778.00305 Chrome Reel 305 m 8719605019653
8778 060500 Chrome Reel 500 ft 612825216278 C
8778 0601000 Chrome Reel 1,000 ft 612825216254 C
8778 0605000 Chrome Reel 5,000 ft 612825216285
