8777LS - Audio, Control & Instrument, #22-3pr, PP, Indiv. Foil, LSZH Jkt, SWA

8777LS – Audio, Control & Instrument, #22-3pr, PP, Indiv. Foil, LSZH Jkt, SWA

Call for Price

Compare
SKU: 8777LS Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

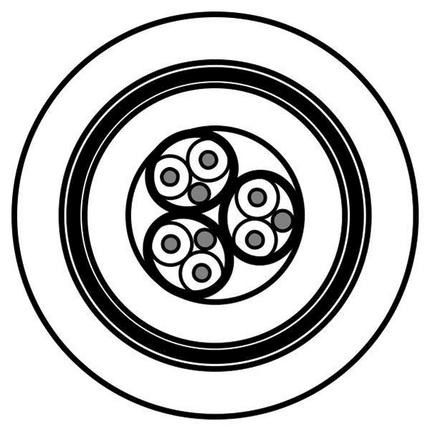

Construction Details

Conductor
Size Stranding Material
22 7×30 TC – Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
PP – Polypropylene 1.27 mm (0.0500 in) Black & Red, Black & White, Black & Green
Red, Green, Blue
Inner Shield
Shield Type Material Coverage Drainwire Type Notes
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC each pair
Polyester each pair
Outer Shield
Material
Bi-Laminate (Alum+Poly)
Inner Jacket
Material Nom. Thickness Nom. Diameter Color
LSZH – Low Smoke Zero Halogen (Flame Retardant) 0.89 mm (0.035 in) 7 mm (0.28 in) Chrome (RAL 7037)
Armor
Armor Type & Material Armor Thickness Coverage
SWA – Steel Wire Armor 0.9 mm (0.035 in) Min. 95%
Outer Jacket
Material Nom. Thickness Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 1.35 mm (0.0531 in) 11.5 mm (0.453 in)
Overall Cable Diameter (Nominal): 11.5 mm (0.453 in)

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
49.2 Ohm/km (15.0 Ohm/1000ft) 34.8 Ohm/km (10.6 Ohm/1000ft) 98.4 pF/m (30.0 pF/ft) 180.4 pF/m (54.99 pF/ft) 50 Ohm 2 A

Mechanical Characteristics

Temperature
Operating Installation Storage
-45°C To +80°C -15°C To +80°C -45°C To +80°C
Bend Radius
Installation Min.
115 mm (4.53 in)

Standards and Compliance

Environmental Suitability: IndoorIndoor/OutdoorOutdoorIndoor/Outdoor – Euroclass Eca, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: IEC 60332-1-2, IEC 60332-3-24
ISO/IEC Compliance: IEC 61034-2 – Smoke Density Min Transmittance = 60%
CENELEC Compliance: EN 50290-2-20
European Halogen Free Standards: IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 2.5 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU CE Mark

History

Update and Revision: Revision Number: 0.237 Revision Date: 02-20-2024

Part Numbers

Variants
Item # Color Putup Type Length EAN
8777LS.00500 Black Reel 500 m 8719605019578
8777LS.001000 Black Reel 1,000 m 8719605019561
