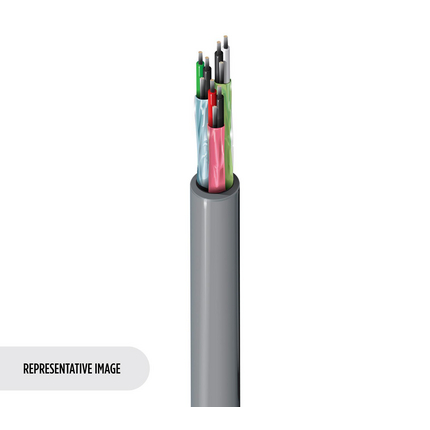

8777ELV - Audio, Control & Instrument, #22-3pr, PP, Indiv. Foil, LSZH Jkt, B2ca

8777ELV – Audio, Control & Instrument, #22-3pr, PP, Indiv. Foil, LSZH Jkt, B2ca

Call for Price

Compare
SKU: 8777ELV Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
22 7×30 TC – Tinned Copper 0.03 mm 3
Conductor Count: 6
Insulation
Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
PP – Polypropylene 1.27 mm 0.05 mm 0.01 in
Color Chart
Number Color
Pair 1 Black & Red
Pair 2 Black & White
Pair 3 Black & Green
Table Notes: Shielded pairs
Color Chart 2
Number Color
Pair 1 Red
Pair 2 Green
Pair 3 Blue
Inner Shield
Type Layer Material Material Trade Name Coverage [%] Thickness of Foil Drainwire Material Drainwire AWG
Tape 1 Bi-Laminate (Alum+Poly) Beldfoil® (Z-Fold®) 100% 9 / 12 µm TC – Tinned Copper AWG22/7
Polyester
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) 7.00 mm 0.89 mm

Construction and Dimensions

Stranding
Twists
6.86 twist/ft
Cabling
Description
3 wires twisted to cable core

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR Nominal Inner Shield DCR
10.6 Ohm/1000ft 49.2 Ohm/km 34.8 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
98.4 pF/m 180.4 pF/m
Inductance
Nominal Inductance Nominal Pair Inductance
0.18 µH/ft 0.59 µH/m
Impedance
Nominal Characteristic Impedance
50 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66%
Current
Element Max. Recommended Current [A]
Conductor(s) 2 A
Voltage
Voltage Rating [V]
300 V

Temperature Range

Installation Temperature Range: -15°C To +80°C
UL Temp Rating: 80°C
Storage Temperature Range: -45°C To +80°C
Operating Temperature Range: -20°C To +80°C
Operating Temp Range (Flexible Install): -15°C To +80°C
Operating Temp Range (Fixed Install): -45°C To +80°C

Mechanical Characteristics

Oil Resistance: IEC 60811-404
Max. Pull Tension: 180 N
Min. Bend Radius During Installation: 70 mm
Min. Bend Radius/Minor Axis: 2.75 in

Standards

CPR Euroclass: B2ca-s1,d1,a1
CENELEC Compliance: EN 50290-2-20

Applicable Environmental and Other Programs

Environmental Space: Indoor – Euroclass B2ca
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes
Suitability – Non-Halogenated: Yes
Suitability – Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 – Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
IEC 61034-2 – Smoke Density Min. Transmittance: 60%

Plenum/Non-Plenum

Plenum (Y/N): No

History

Update and Revision: Revision Number: 0.30 Revision Date: 12-22-2023
