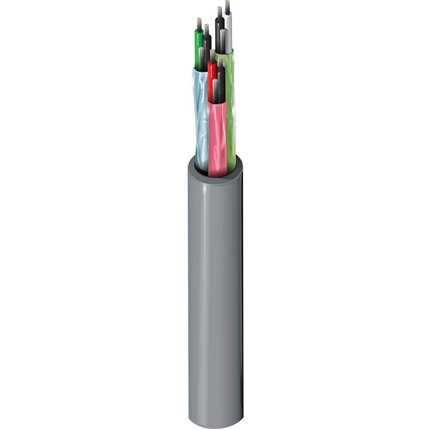

87777 - Audio, Control & Instrument, #22-3pr, FEP, Indiv. Foil, PVDF Jkt, CMP

87777 – Audio, Control & Instrument, #22-3pr, FEP, Indiv. Foil, PVDF Jkt, CMP

Call for Price

Compare
SKU: 87777 Categories: , , ,

Description

Product Overview

Suitable Applications: extreme high temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; voice communications; panel wiring

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
22 7×30 TC – Tinned Copper 0.03 in 3
Conductor Count: 6
Insulation
Material Nominal Wall Thickness
FEP – Fluorinated Ethylene Propylene 0.01 in
Color Chart
Number Color
1 Black & Red
2 Black & White
3 Black & Green
Inner Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® (Z-Fold®) 100% TC – Tinned Copper 22 Stranded
Outer Shield
Material Drainwire AWG
No Shield 22
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVDF – Polyvinylidene Fluoride 0.234 in 0.014 in

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCR Max. Conductor DCR
11.3 Ohm/1000ft 160 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
31 pF/ft 67 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
50 Ohm
Delay
Max. Delay Skew Nominal Delay Nominal Velocity of Propagation (VP) [%]
69 ns/100m 1.47 ns/ft 69%
Current
Max. Recommended Current [A]
3.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temperature Range: -20°C To +150°C

Mechanical Characteristics

Bulk Cable Weight: 36 lbs/1000ft
Max. Pull Tension: 82 lbs
Min. Bend Radius/Minor Axis: 2.5 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
CSA Flammability: FT6
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Related Part Numbers

Non-Plenum Number: 8777
Variants
Item # Color UPC
87777 0021000 Red 612825216209
87777 002500 Red 612825216216
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.347 Revision Date: 05-05-2023
