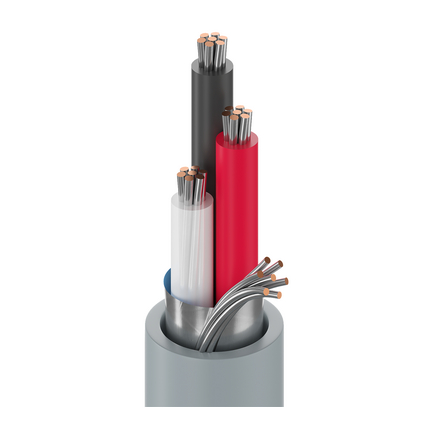

8772 - Electronic, 3 C #20 Str TC, PE Ins, OS, PVC Jkt, CM

8772 – Electronic, 3 C #20 Str TC, PE Ins, OS, PVC Jkt, CM

Call for Price

Compare
SKU: 8772 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 20 AWG 7×28 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PE – Polyethylene 0.017 in (0.43 mm) 0.070 in (1.8 mm) Black, Red, Clear
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7×28) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.033 in (0.84 mm) 0.218 in (5.54 mm)
Overall Cable Diameter (Nominal): 0.218 in (5.54 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 11.1 Ohm/1000ft 27 pF/ft (89 pF/m) 51 pF/ft (170 pF/m) 8 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V (CM), 300 V (UL AWM 2093)

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
2.2 in (56 mm) 2.2 in (56 mm)
Max. Pull Tension: 50.4 lbs (22.9 kg)
Bulk Cable Weight: 28 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance: Article 800, CM
AWM Compliance: AWM 2093
CEC / C(UL) Compliance: CM
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.536 Revision Date: 04-19-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC/EAN Footnote
8772.00152 Chrome Reel 152 m 8719605019370
8772.00U152 Chrome UnReel 152 m 8719605019394
8772.00305 Chrome Reel 305 m 8719605019387
8772.00U305 Chrome UnReel 305 m 8719605019400
8772 060500 Chrome Reel 500 ft 612825215806 C
8772 060U500 Chrome UnReel 500 ft 612825215783
8772 0601000 Chrome Reel 1,000 ft 612825215790 C
8772 060U1000 Chrome UnReel 1,000 ft 612825215776
8772 0605000 Chrome Reel 5,000 ft 612825215813
