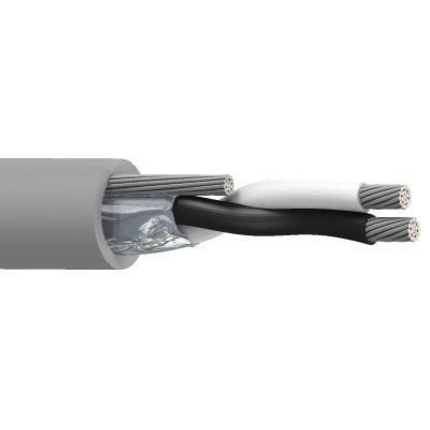

8761MN - SpaceMaker™, 2 C #22 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

8761MN – SpaceMaker™, 2 C #22 Str TC, PO Ins, OS, PVC Jkt, AWM 2937

Call for Price

Compare
SKU: 8761MN Categories: , , ,

Description

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG 19×34 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP – Polypropylene 0.01 in (0.25 mm) 0.050 in (1.3 mm) Black & White
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 24 AWG (19×36) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.016 in (0.41 mm) 0.135 in
Overall Cable Diameter (Nominal): 0.135 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence Max. Current
18.1 Ohm/1000ft 28.8 pF/ft (94.5 pF/m) 55.9 pF/ft (183 pF/m) 51 Ohm 4.64 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
1.350 in (34.29 mm) 1.350 in
Max. Pull Tension: 15.4 lbs (6.99 kg)
Bulk Cable Weight: 11 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
CPR Compliance: CPR Euroclass: Eca
AWM Compliance: AWM 2937
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.405 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color UPC
8761MN 006100 Blue, Light 612825386032
8761MN 0061000 Blue, Light 612825386049
8761MN 008100 Gray 612825386056
8761MN 0081000 Gray 612825382737
8761MN 004100 Yellow 612825386018
8761MN 0041000 Yellow 612825386025
