8740 - Electronic, 1 Pr #22 Sol TC, PVC Ins, PVC Jkt, CMG

8740 – Electronic, 1 Pr #22 Sol TC, PVC Ins, PVC Jkt, CMG

Call for Price

Compare
SKU: 8740 Categories: , , ,

Description

Product Overview

Suitable Applications: telephone cables; low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); voice communications

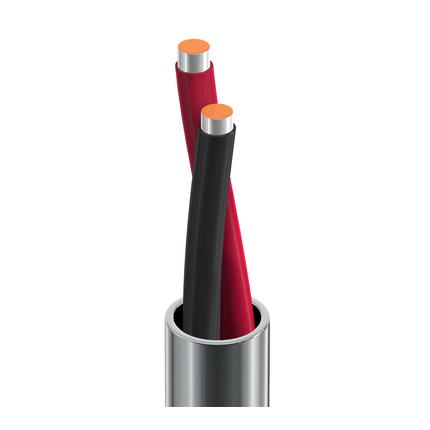

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG Solid TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC – Polyvinyl Chloride 0.010 in (0.25 mm) 0.046 in (1.2 mm) Black & Red
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.032 in (0.81 mm) 0.156 in (3.96 mm)
Overall Cable Diameter (Nominal): 0.156 in (3.96 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Pair(s) 20.6 Ohm/1000ft 30 pF/ft (98 pF/m) 6 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
150 V (CMG), 150 V (UL AWM 2576)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
1.6 in (41 mm) 1.6 in (41 mm)
Max. Pull Tension: 16 lbs (7.3 kg)
Bulk Cable Weight: 12 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMG
AWM Compliance: AWM 2576
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.485 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC
8740 060U500 Chrome UnReel 500 ft 612825214861
8740 060U1000 Chrome UnReel 1,000 ft 612825214854
