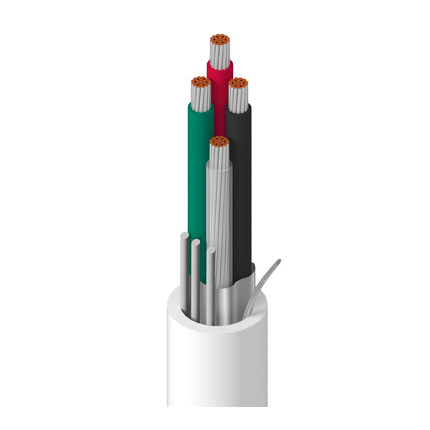

8729 - Electronic, 4 C #22 Str TC, PE Ins, OS, PVC Jkt, CM

8729 – Electronic, 4 C #22 Str TC, PE Ins, OS, PVC Jkt, CM

Call for Price

Compare
SKU: 8729 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 4 22 AWG 19×34 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PE – Polyethylene 0.016 in (0.41 mm) 0.062 in (1.6 mm) Black, Red, Green, Clear
Outer Shield
Shield Type Material Coverage Drainwire Type Notes
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (Solid) TCCS Also has Stranded #25 drain
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.051 in (1.3 mm) 0.257 in (6.53 mm)
Overall Cable Diameter (Nominal): 0.257 in (6.53 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 17.8 Ohm/1000ft 22 pF/ft (72 pF/m) 42 pF/ft (140 pF/m) 4.8 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V (CM), 300 V (UL AWM 2094)

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C -20°C to +75°C
Bend Radius
Stationary Min. Installation Min.
2.6 in (66 mm) 2.6 in (66 mm)
Max. Pull Tension: 46 lbs (21 kg)
Bulk Cable Weight: 43 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CM, CL3
AWM Compliance: AWM 2094
CEC / C(UL) Compliance: CM
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.478 Revision Date: 04-14-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8729 009500 White Reel 500 ft 612825214724 C
8729 009U500 White UnReel 500 ft 612825214700
8729 0091000 White Reel 1,000 ft 612825214717 C
8729 009U1000 White UnReel 1,000 ft 612825214694
8729 0095000 White Reel 5,000 ft 612825214731
