8725NH - AUDIO ANALOG 4 PAIR 20AWG, BELDFOIL, LSZH

8725NH – AUDIO ANALOG 4 PAIR 20AWG, BELDFOIL, LSZH

Call for Price

Compare
SKU: 8725NH Categories: , , , ,

Description

Product Overview

Suitable Applications: Audio, communication and intrumentation cable

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Construction n x D
20 7×28 TC – Tinned Copper 7×0.32 mm
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE – Polyethylene 1.72 mm 0.05 mm
Color Chart
Number Color
Pair 1 Black & Red
Pair 2 White & Green
Pair 3 White/Red & White/Black
Pair 4 White/Green & White/Yellow
Color Chart 2
Number Color
Pair 1 Red
Pair 2 Green
Pair 3 t/m 4 Blue
Inner Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D Drainwire Position
Bi-Laminate (Alum+Poly) Beldfoil® 100% Stranded tinned copper 22 7×0.25 mm Under shielding foil
Tape Polyester
Table Notes: Aluminum inside
Outer Shield
Material
Bi-Laminate (Alum+Poly)
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
LSZH – Low Smoke Zero Halogen (Flame Retardant) 8.50 mm 0.30 mm

Construction and Dimensions

Cabling
Description

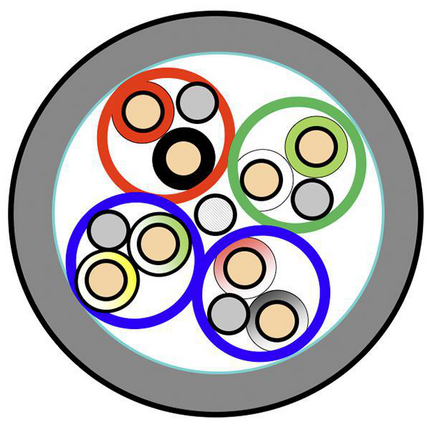

1 center filler + 4 cabled pairs

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
35.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
88 pF/m 160 pF/m
Inductance
Nominal Inductance
0.62 µH/m
Impedance
Nominal Characteristic Impedance
56 Ohm
Current
Max. Recommended Current [A]
3.9 Amps per Conductor
Voltage
Voltage Rating [V]
300 V

Temperature Range

Storage Temperature Range: -40°C to +70°C
Operating Temp Range (Fixed Install): -40°C To +70°C

Mechanical Characteristics

Max. Pull Tension: 50 N
Min. Bend Radius During Installation: 85 mm
Min Setting Radius: 42.5 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor – Euroclass Eca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 – Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
IEC 61034-2 – Smoke Density Min. Transmittance: 60%

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
8725NH.00500 Gray Reel 500 m 8719605018779

History

Update and Revision: Revision Number: 0.196 Revision Date: 12-22-2023
