8725 - Audio, Control and Instrumentation Cable, 4 Pr #20 Str TC, Ind. Shielded, PVC Jkt, CM

8725 – Audio, Control and Instrumentation Cable, 4 Pr #20 Str TC, Ind. Shielded, PVC Jkt, CM

Call for Price

Compare
SKU: 8725 Categories: , , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

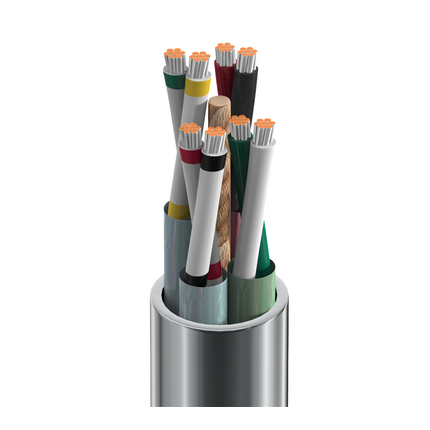

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 4 20 AWG 7×28 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP – Polypropylene 0.015 in (0.38 mm) 0.068 in (1.7 mm) Red & Black, Green & White, White/Red Stripe & White/Black Stripe, White/Green Stripe & White/Yellow Stripe
Inner Shield
Element Shield Type Material Coverage Drainwire Type Notes
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC Indiv foil tape w/Shorting fold and polyester tape over each pair
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.030 in (0.76 mm) 0.336 in (8.53 mm)
Overall Cable Diameter (Nominal): 0.336 in (8.53 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Pair(s) 11.3 Ohm/1000ft 18.38 Ohm/1000ft (60.30 Ohm/km) 27 pF/ft (89 pF/m) 49 pF/ft (160 pF/m) 56 Ohm 3.04 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
400 V

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -40°C to +105°C
Bend Radius
Stationary Min. Installation Min.
4.0 in (100 mm) 4.0 in (100 mm)
Max. Pull Tension: 109.9 lbs (49.85 kg)
Bulk Cable Weight: 69 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire: VW-1
CPR Compliance: CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.451 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
8725 060500 Chrome Reel 500 ft 612825214663 C
8725 0601000 Chrome Reel 1,000 ft 612825214625 C
