Product Overview
| Suitable Applications: |
Instrumentation and computer cable; For data transmission applications |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Pairs |
| 22 |
7×30 |
TC – Tinned Copper |
2 |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| PP – Polypropylene |
1.17 mm |
0.05 mm |
| Number |
Color |
| Pair 1 |
Black & Red |
| Pair 2 |
Green & White |
| Type |
Material |
Material Trade Name |
Thickness of Foil |
Drainwire Material |
| Tape |
Bi-Laminate (Alum+Poly) |
Beldfoil® (Z-Fold®) |
9 / 12 µm |
TC – Tinned Copper |
| Material |
Color |
Nominal Diameter |
Nominal Wall Thickness |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
Chrome (RAL 7037) |
4.55 mm |
0.65 mm |
| Table Notes: |
UV Stabilised |
| Material |
| Bi-Laminate (Alum+Poly) |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
8.8 mm |
1.25 mm |

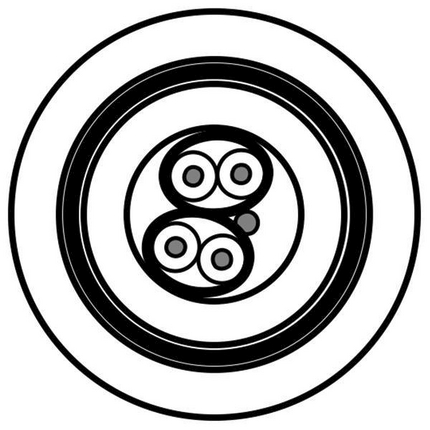

Construction and Dimensions
| Description |
| 2 pairs twisted to cable core |
| Type of Armor |
Material |
Thickness of Armoring Wires |
Coverage Percentage |
| Steel Wire Armoring |
Galvanized steel wire |
0.9 mm |
Min. 95% |
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Inner Shield DCR |
| 49.2 Ohm/km |
54.5 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Other Conductor to Shield |
| 114.8 pF/m |
203.4 pF/m |
| Nominal Pair Inductance |
| 0.56 µH/m |
| Nominal Characteristic Impedance |
| 45 Ohm |
| Element |
Max. Recommended Current [A] |
| Conductor(s) |
2.3 Amps per Conductor |
Temperature Range
| Installation Temperature Range: |
-15°C To +80°C |
| Storage Temperature Range: |
-45°C To +80°C |
| Operating Temp Range (Flexible Install): |
-15°C To +80°C |
| Operating Temp Range (Fixed Install): |
-45°C To +80°C |
Mechanical Characteristics
| Oil Resistance: |
IEC 60811-404 |
| Min. Bend Radius During Installation: |
132 mm |
Standards
| CENELEC Compliance: |
EN 50290-2-20 |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor – Euroclass Eca |
Suitability
| Suitability – Sunlight Resistance: |
Yes |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-3-24 |
| IEC 60754-1 – Halogen Amount: |
Zero |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
2.5 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
| IEC 61034-2 – Smoke Density Min. Transmittance: |
60% |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 8723LS.00500 |
Black |
Reel |
500 m |
8719605018694 |
| 8723LS.001000 |
Black |
Reel |
1,000 m |
8719605018687 |
History
| Update and Revision: |
Revision Number: 0.233 Revision Date: 02-20-2024 |
